HPG-U1 Series / Gear Head Planetary Speed Reducer / Input Shaft Unit Type

Features

The HarmonicPlanetary® HPG series input shaft unit is a planetary speed reducer featuring high accuracy and high stiffness.

*Click here for Online HarmonicGearhead® Selection tool.

*Product images are for reference purposes.

Model

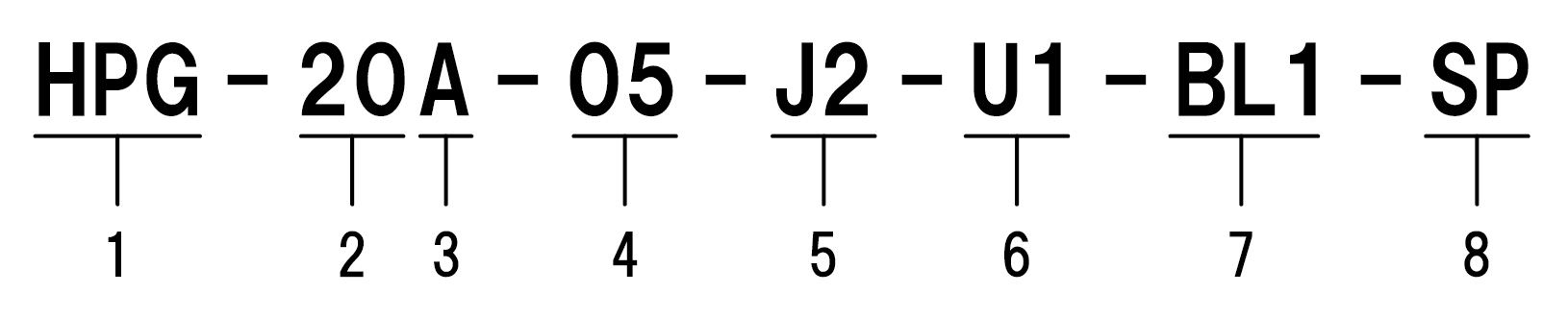

  1. Model: HPG series
  2. Model Nos.: 11, 14, 20, 32, 50, 65
  3. Version symbol
  4. Reduction ratio:
    • Model No. 11 = 5, 9, 21, 37, 45
    • Model No. 14 = 3, 5, 11, 15, 21, 33, 45
    • Model No. 20 = 3, 5, 11, 15, 21, 33, 45
    • Model No. 32 = 3, 5, 11, 15, 21, 33, 45
    • Model No. 50 = 3, 5, 11, 15, 21, 33, 45
    • Model No. 65 = 4, 5, 12, 15, 20, 25, 40, 50
  5. Output shaft shape:
    • F0 = Flange output
    • J2 = Straight shaft (key-less) (No.11 is J20)
    • J6 = Straight shaft (Key center, tapped) (No.11 is J60)
    • (The shaft output of model No.65 is special specifications)
  6. Form symbol on the input side:
    • U1 = Input side shaft type (with keyway)
  7. Additional codes:
    • BL1 = Backlash of less than 1 arc-min., special specification (Model Nos.14-65)
    • NR6 = Silent specification, backlash of less than 6 arc-min (Model Nos. 14-50)
  8. Special specification:
    • No description = Standard product
    • SP = Special specification
