CSG-2UK Series / Unit / High Torque & Sealed Full Unit Type

Features

It maintains the same flat structure, but the sealed structure
offers simple design and a product that is easy to handle.
The CSG series unit type HarmonicDrive® for high load capacity is outfitted with high stiffness bearings (cross roller bearings).

- High torque
- Long service life (better rated life)

*Product images are for reference purposes.

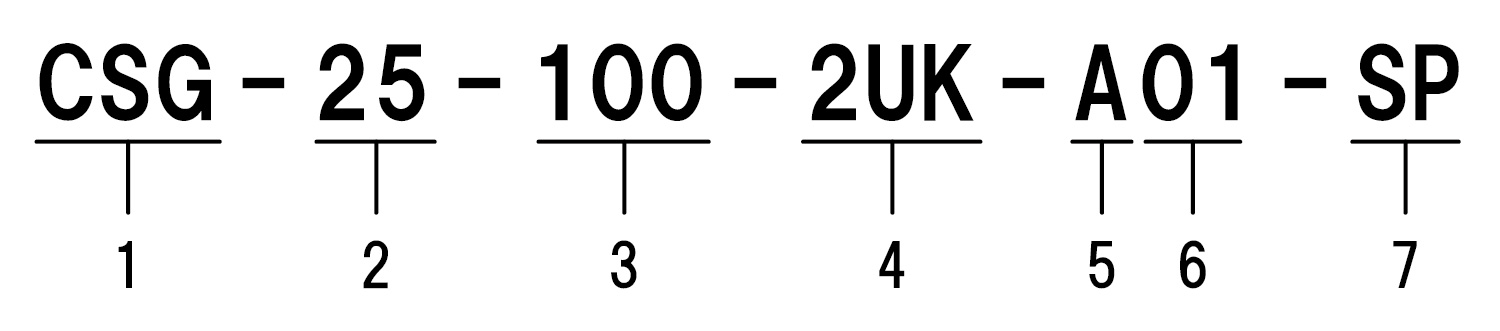

Model

  1. Model: CSG series
  2. Model Nos: 25, 32, 40, 45, 58, 65
  3. Reduction ratio: 50, 80, 100, 120, 160
  4. Model: 2UK = Sealed type
  5. Spline outside diameter:
    • A = Approx. 29mm
    • B = Approx. 44mm
    • C = Approx. 54mm
  6. Form symbol (design order serial number): 01 to 05
  7. Special specification:
    • No description = Standard product
    • SP = Special specification
