CSG-LW Series / Unit / High Torque & Lightweight Type

Features

Its newly designed shape and use of lightweight material makes it about 30% lighter.
The CSG series unit type HarmonicDrive® for high load capacity is outfitted with high stiffness bearings (cross roller bearings).

- High torque
- Long service life (better rated life)

Compared to CSF Series:
    Torque capacity increased by 30%
    Service life improved by 43% (10,000 hours)

*Product images are for reference purposes.

Model

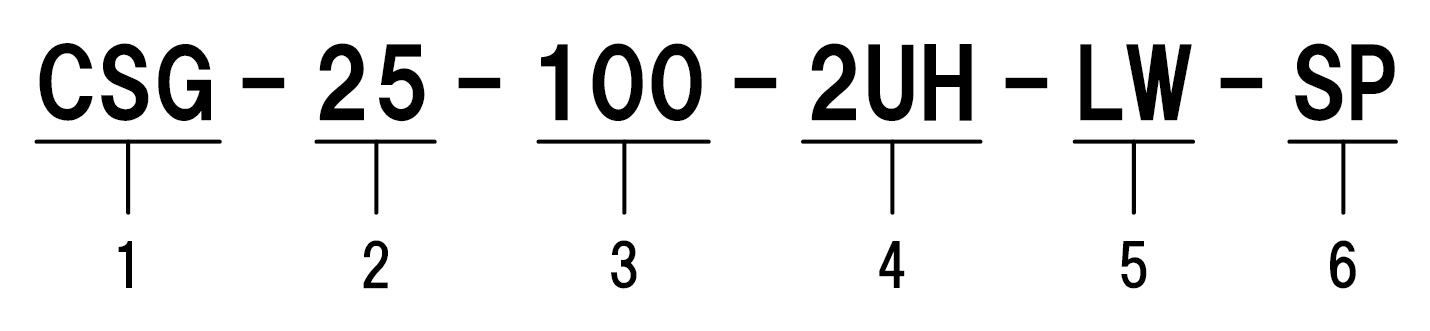

  1. Model: CSG series
  2. Model Nos: 14, 17, 20, 25, 32, 40, 45, 50, 58, 65
  3. Reduction ratio: 50, 80, 100, 120, 160
  4. Model:
    • 2UH = Unit type
  5. Type: LW = Lightweight type
  6. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name PDF
HarmonicDrive® Reducer for precision control General catalog of HarmonicDriveR

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual HarmonicDrive® Speed Reducer HarmonicDrive® Engineering Data

Related products

A sealed full unit type that integrates everything up to the input side seal. This easy-to-handle product requires no seal design.

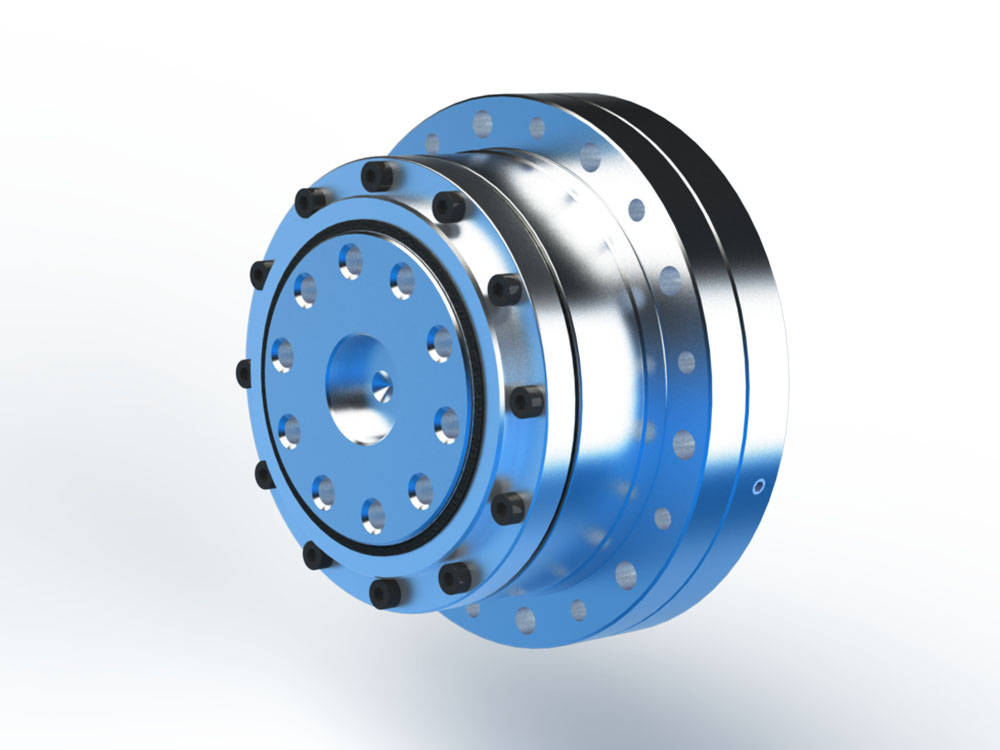

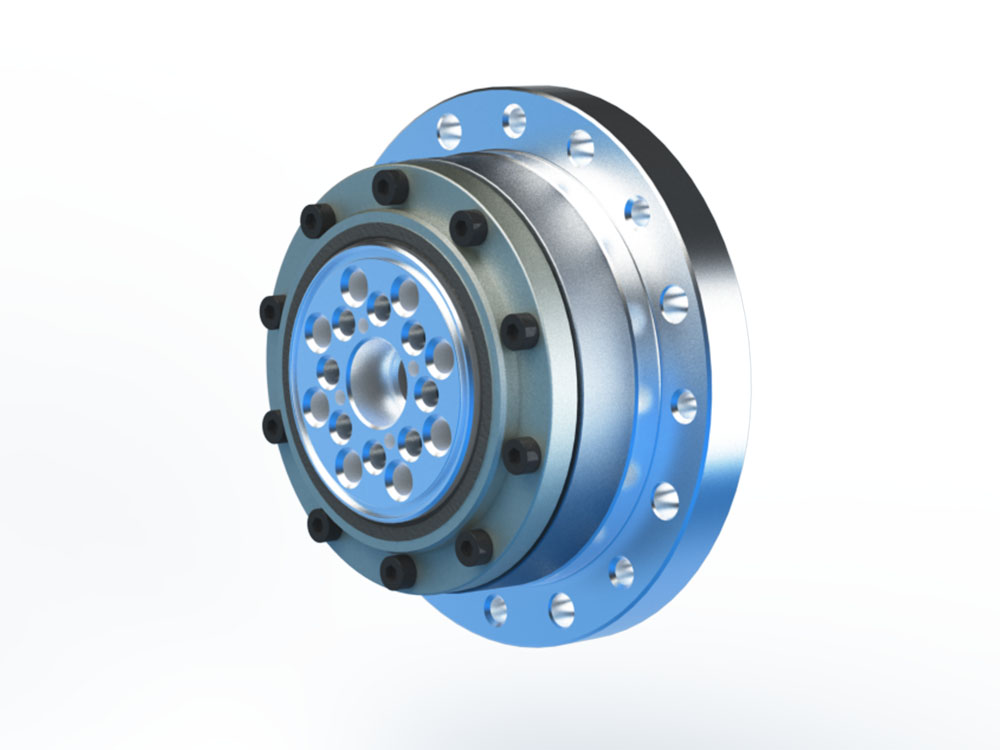

Achieves a 30% lighter design than the CSF unit series. Contributes to lighter and faster equipment and robots with greater load capacity.

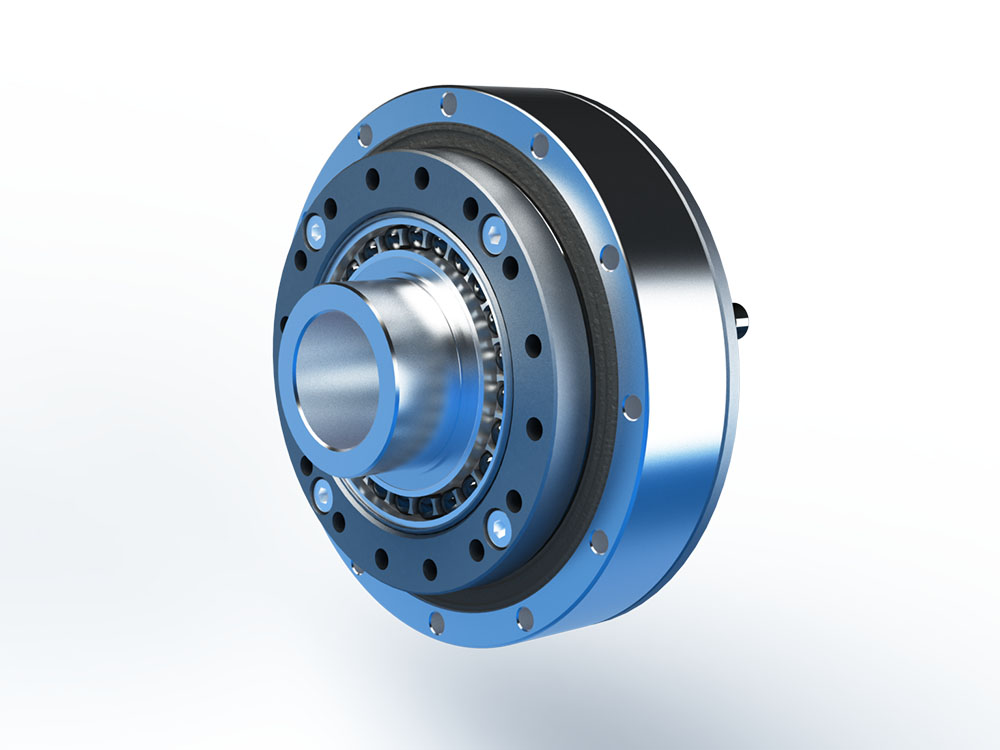

This simple unit type with hollow structure embeds a cross roller bearing only in the component type.
