CSD Series / Component / Cup Type Super Flat Type

Features

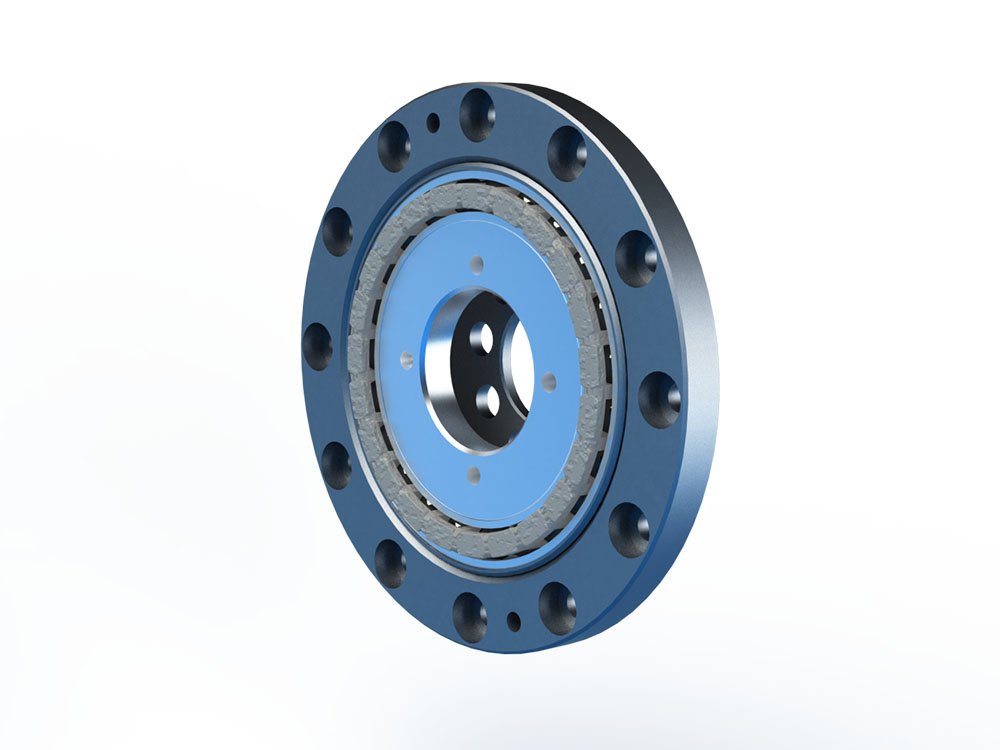

The CSD Series component type pushes flatness to new extremes.
In comparison with the CSG/CSF Series, it reduces the length in the shaft direction by about 50%.

*Product images are for reference purposes.

Model

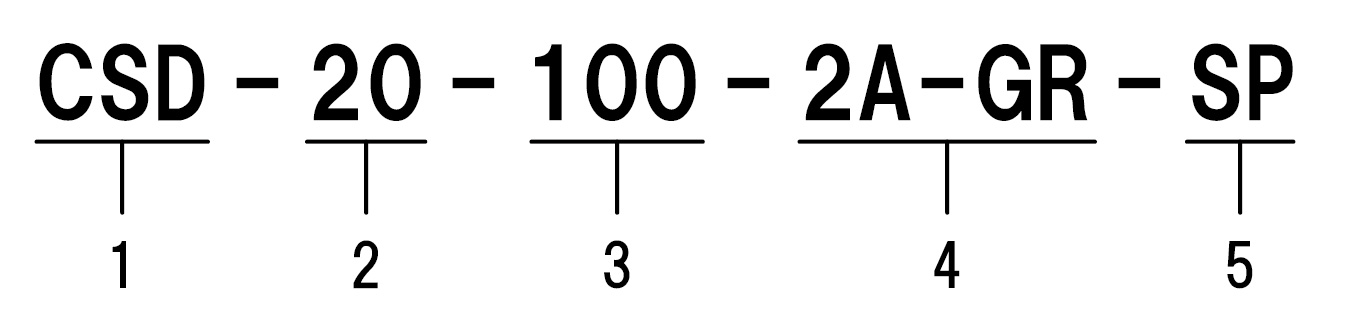

  1. Model: CSD series
  2. Model Nos: 14, 17, 20, 25, 32, 40, 50
  3. Reduction ratio: 50, 80, 100, 120, 160
  4. Model: 2A-GR = Component type (2A-R for model Nos 14 and 17)
  5. Specifications:
    • No description = Standard product
    • BB = If making the boss hole of the Flexspline its maximum diameter (For more information, refer to the catalog)
    • BB-SP = BB specification: special specification products for other parts (For more information, refer to the catalog)
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
HarmonicDrive® Reducer for precision control General catalog of HarmonicDrive®
PDF
2403-26R
PDF
2308-25R
PDF
2308-25R

Click here for Catalog

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual HarmonicDrive® Speed Reducer HarmonicDrive® Engineering Data
PDF
2107-21R

Click here for Manual

Related products

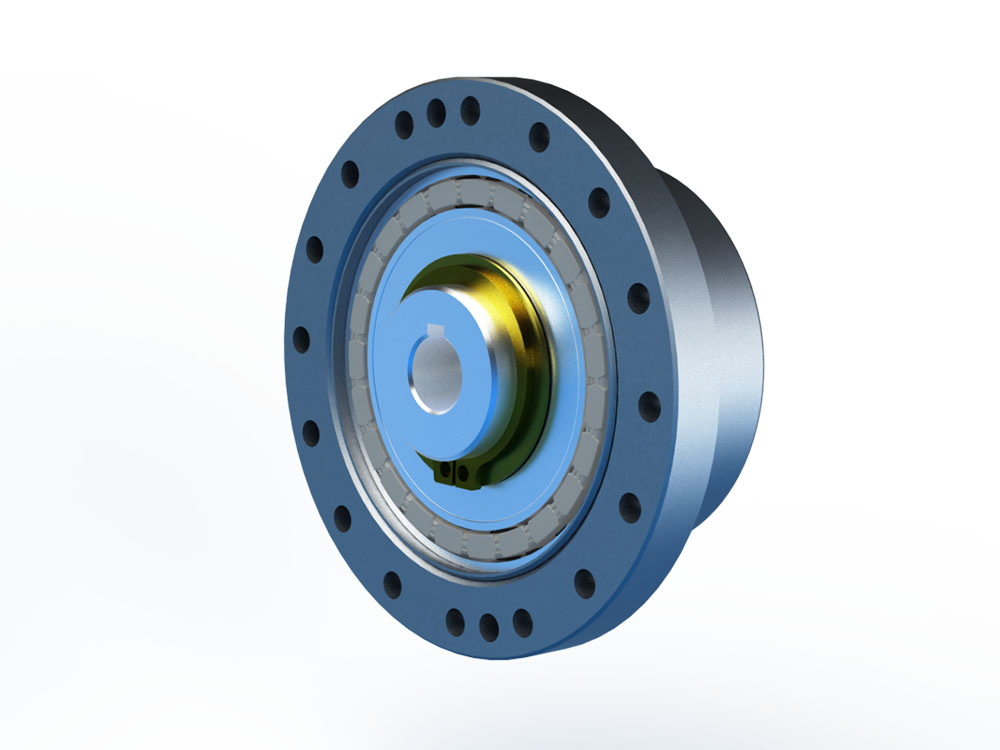

CSG Series / Component / Cup Type High Torque Type
The highest-spec model with a 30% higher torque capacity and 43% longer speed reducer life than the CSF Series of standard models.

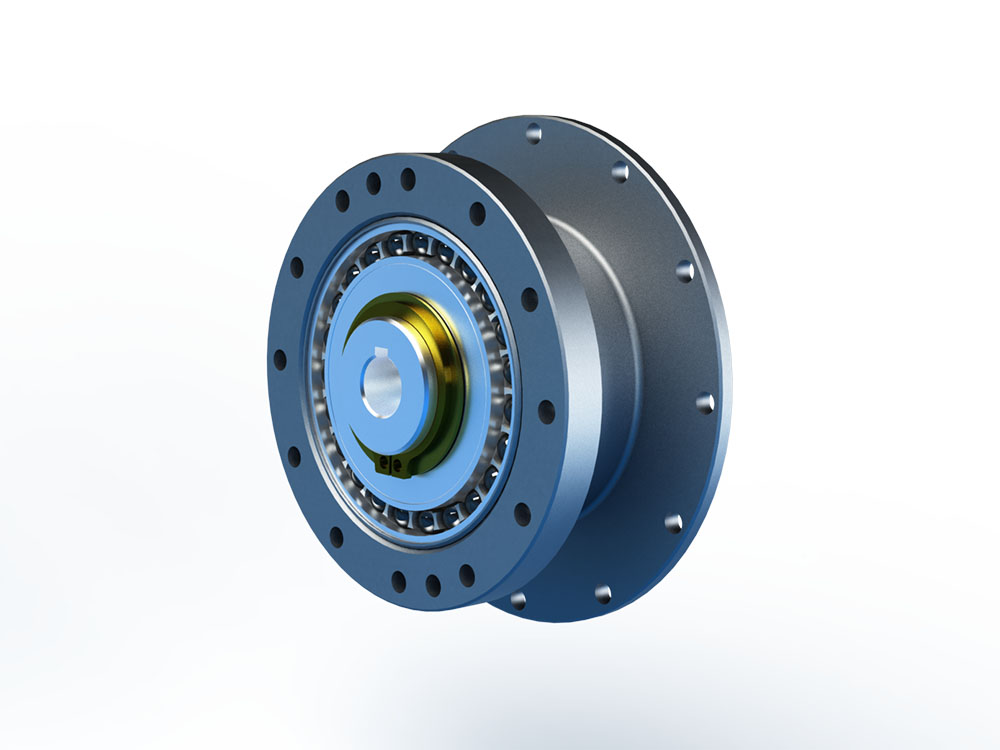

SHF Series / Component / Silk Hat Type Standard Type

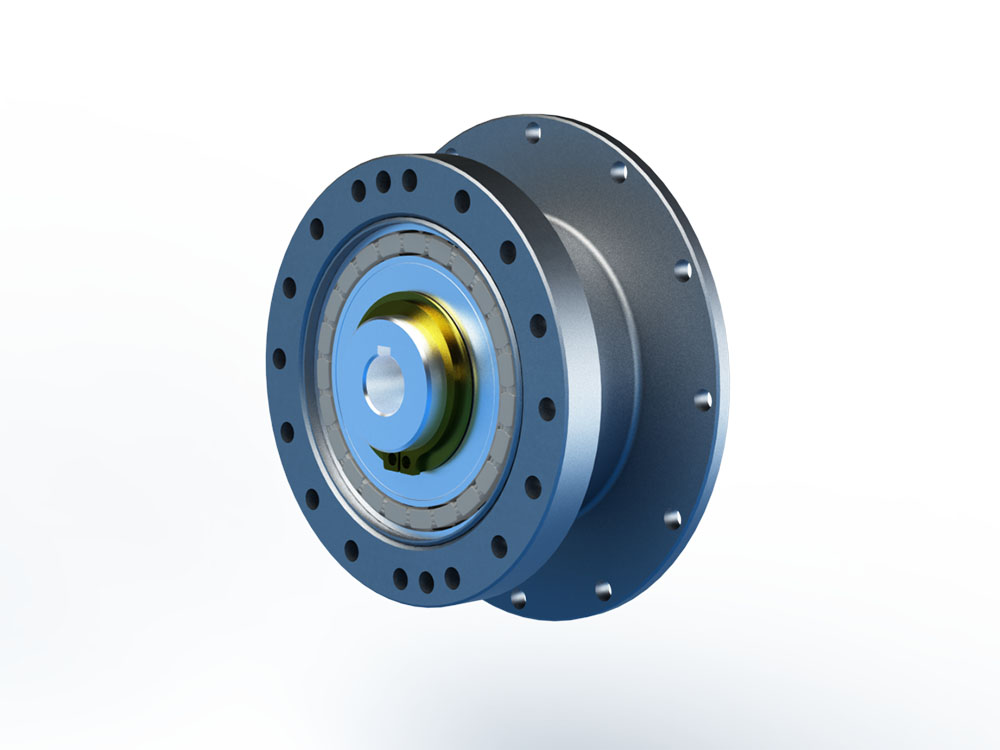

The hollow Harmonic Drive® model. The component type is comprised of only three basic components. This type can be directly embedded in machinery and equipment to increase freedom of design.
SHG Series / Component / Silk Hat Type High Torque Type
The highest-spec model with a 30% higher torque capacity and 43% longer speed reducer life than the SHF Series of standard models. The component type is comprised of only three basic components. This type can be directly embedded in machinery and equipment to increase freedom of design.

inquiry

If you have any comments about this product, please contact us using the inquiry form or the nearest sales office.
