CSG Series / Component / Cup Type High Torque Type

Features

The component type, which is comprised of only three basic components.

- High torque
- Long service life (better rated life)
- Backlash-free

Compared to CSF Series:
    Torque capacity increased by 30%
    Service life improved by 43% (10,000 hours)

*Product images are for reference purposes.

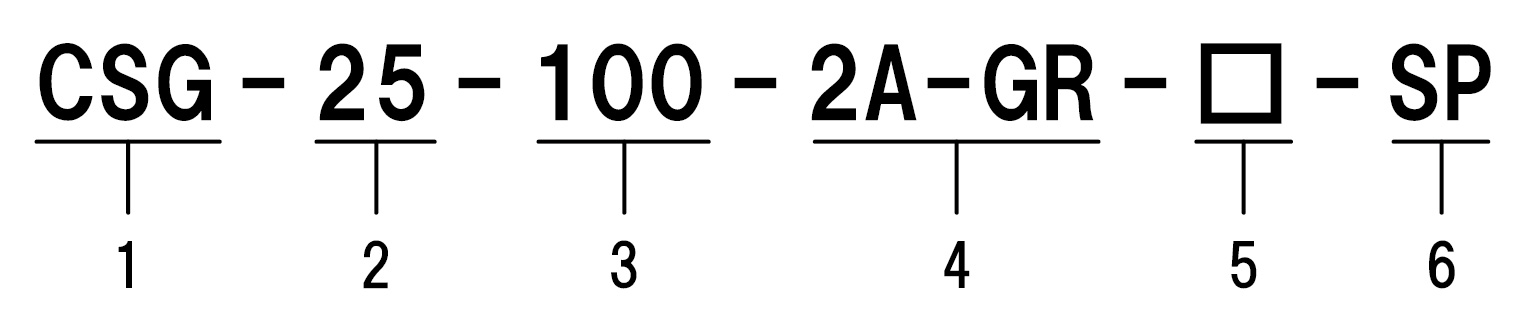

Model

  1. Model name: CSG series
  2. Model Nos: 14, 17, 20, 25, 32, 40, 45, 50, 58, 65
  3. Reduction ratio: 50, 80, 100, 120, 160
  4. Model: 2A-GR = Component type (2A-R for model Nos 14 and 17)
  5. Specification: Symbols for the lubrication method and using conditions
  6. Special specification:
    • No description = Standard product
    • SP = Special specification
