CSD Series / Unit / Standard Structure Unit

Features

The unit type features a CSD Series component outfitted with high stiffness bearings (cross roller bearings) for a compact design.

*Product images and CAD images are for reference purposes.
  See here for form details

Model

  1. Model: CSD series
  2. Model Nos: 14, 17, 20, 25, 32, 40, 50
  3. Reduction ratio: 50, 80, 100, 120, 160
  4. Model:

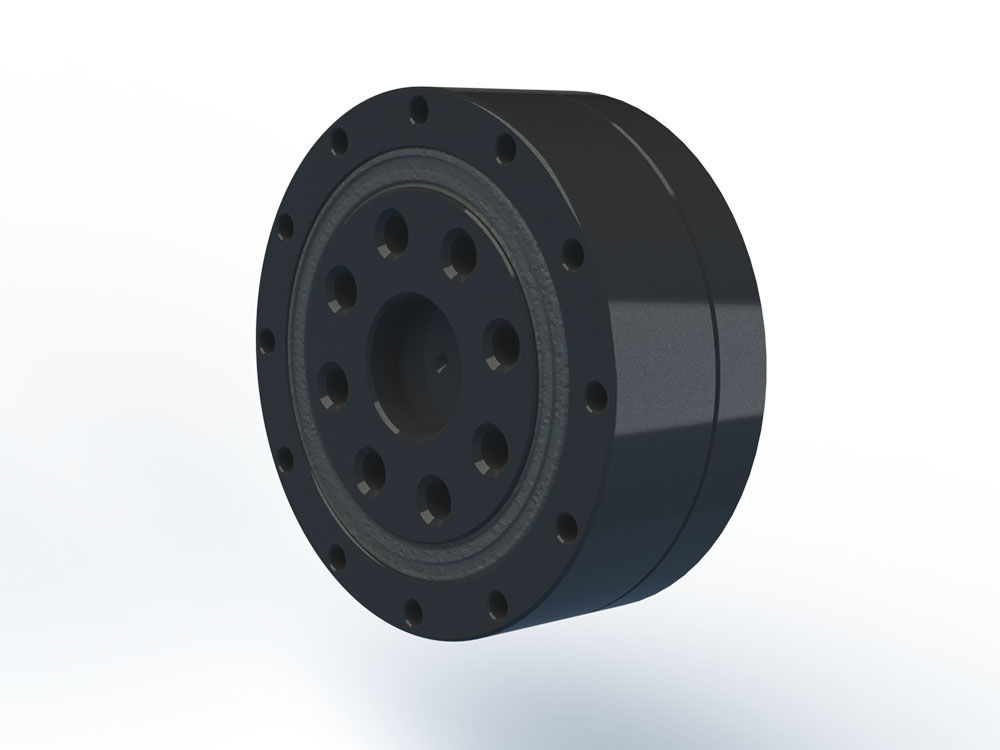

    • 2UH = Extremely thin and compact unit type (model Nos 14 to 50)

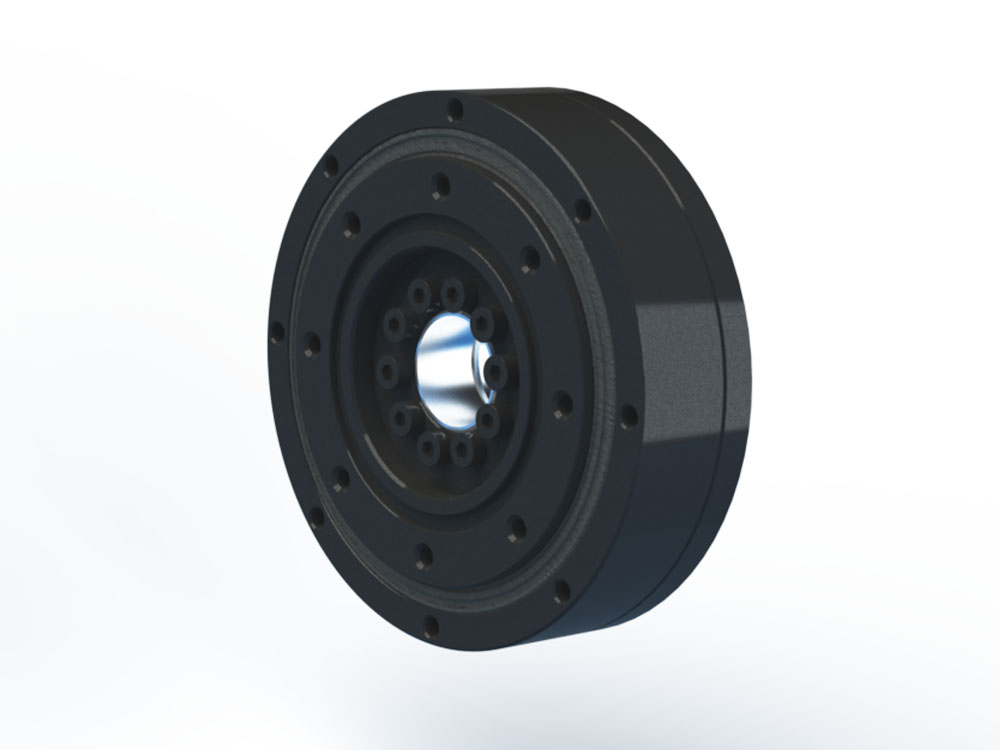

    • 2UF = hollow bore structure type with higher bearing load capacity (model numbers 14 to 40)) Click here for details
  5. Special specification:
    • No description = Standard product
    • SP = Special specification
