CSD Series / Unit / Super Flat Type Hollow & Flat Shape Unit

Features

The unit type features a CSD Series component outfitted with high stiffness bearings (cross roller bearings) for a compact design.
This achieves a hollow structure and increased bearing load capacity.

*Product images and CAD images are for reference purposes.
  See here for form details

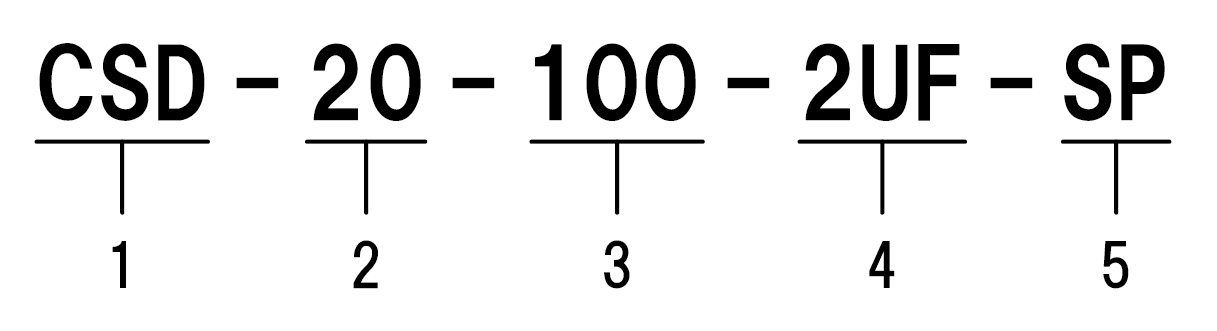

Model

  1. Model: CSD series
  2. Model Nos: 14, 17, 20, 25, 32, 40, 50
  3. Reduction ratio: 50, 80, 100, 120, 160
  4. Model:
    • 2UH = Extremely thin and compact unit type (model numbers 14 to 50) Click here for details
    • 2UF = Hollow bore structure type with higher roller bearing load capacity (model Nos 14 to 40)
  5. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
HarmonicDrive® Reducer for precision control General catalog of HarmonicDrive® 2308-25R 2308-25R 2308-25R

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual HarmonicDrive® Speed Reducer HarmonicDrive® Engineering Data

Related products

This model pushes flatness to new extremes. In comparison with the CSG/CSF Series, this module reduces the length in the shaft direction by about 50%.
