FR Series Component/Pancake Type High Torque Type

Features

- Flat, planar structure
- Flexible customizing possible
- Backlash-free

*Product images are for reference purposes.

Model

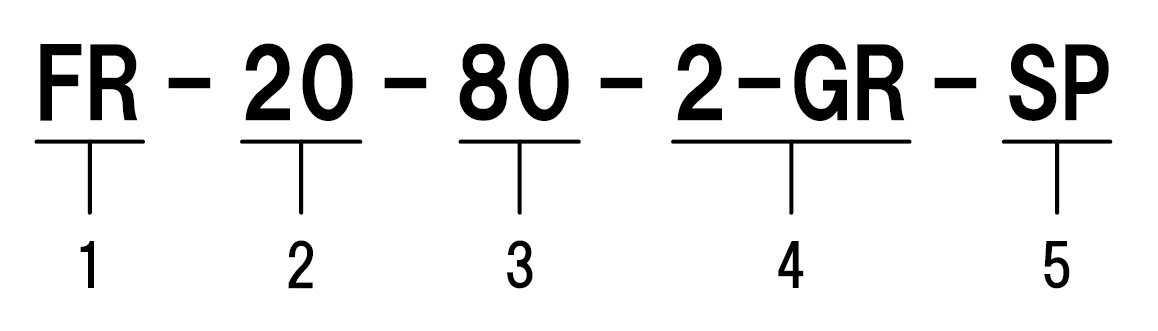

  1. Model: FR series
  2. Model Nos: 14, 20, 25, 32, 40, 50, 65, 80,100
  3. Reduction ratio: 50, 78, 80, 88, 96, 100, 104, 110, 120, 128, 131, 132, 157, 158, 160, 194, 200, 208, 242, 258, 260, 320
  4. Model: 2-G = Component
  5. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name PDF
HarmonicDrive® Reducer for precision control General catalog of HarmonicDriveR

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual HarmonicDrive® Speed Reducer HarmonicDrive® Engineering Data

Related products

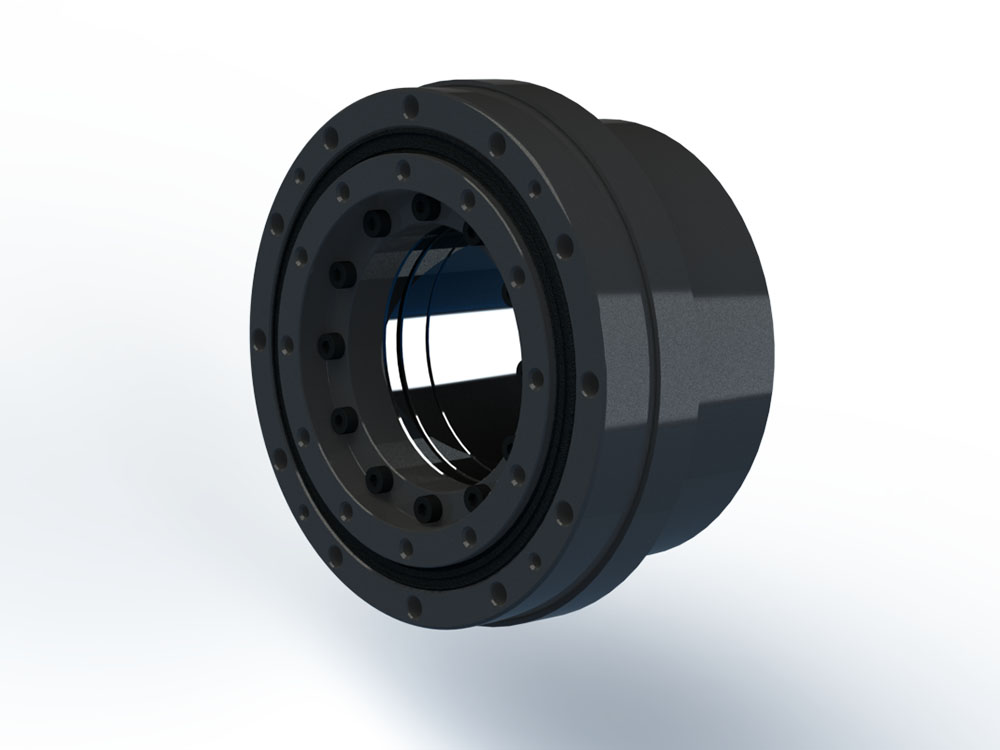

This Harmonic Drive® features a structure with a large hollow bore and small outer diameter. This allows for more compact and space-saving designs for applications such as axes on the ends of robot arms in which cable routing would be an issue, or in various machines and equipment.
This type pushes the flat thin type to its limits.
