CSF-GH Series / Gear Head Harmonic Speed Reducer / Standard Type

Features

The CSF-GH series is a gear head type HarmonicDrive® for high load capacity outfitted with high stiffness bearings (cross roller bearings).
- Backlash-free

*Click here for Online HarmonicGearhead® Selection tool.


*Product images and CAD images are for reference purposes.
  See here for form details

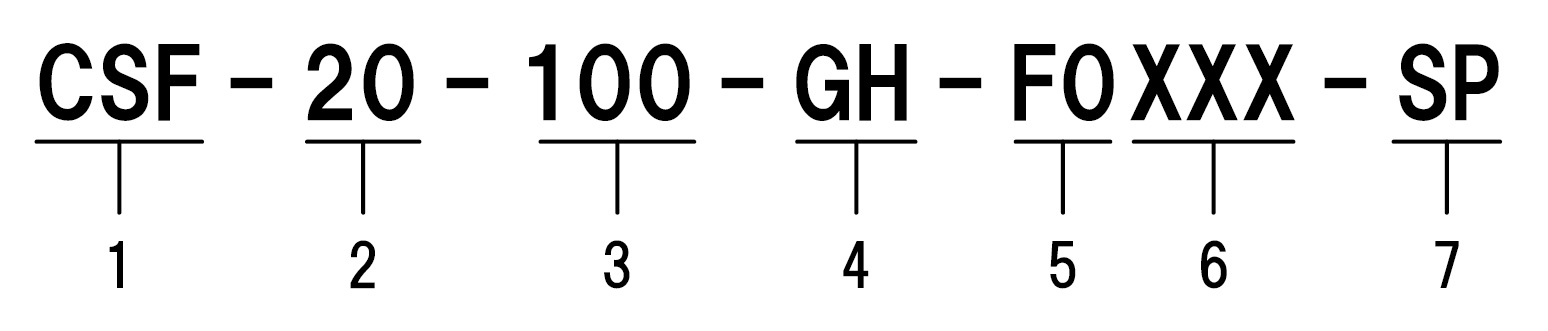

Model

  1. Model: CSF series
  2. Model Nos: 14, 20, 32, 45, 65
  3. Reduction ratio: 50, 80, 100, 120, 160
  4. Model: GH = Gear head type
  5. Output shaft shape:
    • F0 = Flange output
    • J2 = Straight shaft (key-less)
    • J6 = Raight shaft (key center, tapped)
  6. Form symbol for motor flange and input joint (will vary depending on the motor mounted)
  7. Special specification:
    • No description = Standard product
    • SP = Special specification
