CSG-GH Series / Gear Head Harmonic Speed Reducer / High Torque Type

Features

The CSG-GH series is a gear head type HarmonicDrive® for high load capacity outfitted with high stiffness bearings (cross roller bearings).

- High torque
- Long service life (better rated life)
- Backlash-free

Compared to CSF Series:
    Torque capacity increased by 30%
    Service life improved by 43% (10,000 hours)

*Click here for Online HarmonicGearhead® Selection tool.

*Product images are for reference purposes.

Model

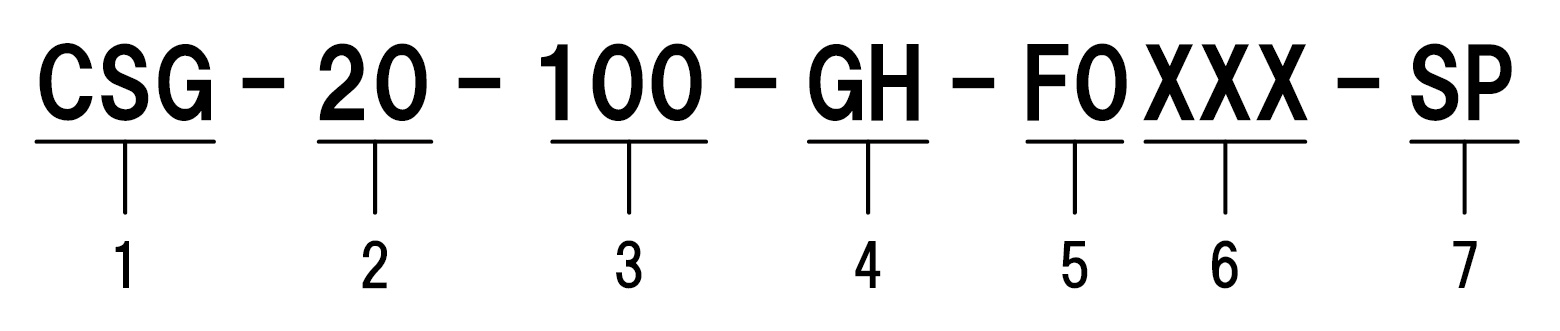

  1. Model: CSG series
  2. Model Nos: 14, 20, 32, 45, 65
  3. Reduction ratio: 50, 80, 100, 120, 160
  4. Model: GH = Gear head type
  5. Output shaft shape:
    • F0 = Flange output
    • J2 = Straight shaft (key-less)
    • J6 = Raight shaft (key center, tapped)
  6. Form symbol for motor flange and input joint (will vary depending on the motor mounted)
  7. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
HarmonicDrive® Reducer for precision control General catalog of HarmonicDrive®
PDF
2404-27R
PDF
2404-27R
PDF
2404-27R

Click here for Catalog

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual HarmonicDrive® Speed Reducer HarmonicDrive® Engineering Data
PDF
2107-21R

Click here for Manual

Related products

CSF-GH Series / Gear Head Harmonic Speed Reducer / Standard Type
This series adopts standard one-touch input joints and mounting flanges for servo motors from various companies to enable simple motor mounting. The CSF Series is the standard Harmonic Drive® model.
HPG Series / Gear Head Planetary Speed Reducer / Standard Type
The standard planetary speed reducer Harmonic Planetary® model. This high accuracy planetary speed reducer has a back lash of three minutes or less with standard specifications and one minute or less with precision specifications.

inquiry

If you have any comments about this product, please contact us using the inquiry form or the nearest sales office.
