RH Series / DC Servo Actuator / Compact Cylinder Type

Features

A DC servo actuator that combines a dedicated flat AC servo motor design with Harmonic Drive®.

- Output shaft: Shaft type

*Product images and CAD images are for reference purposes.
  See here for form details

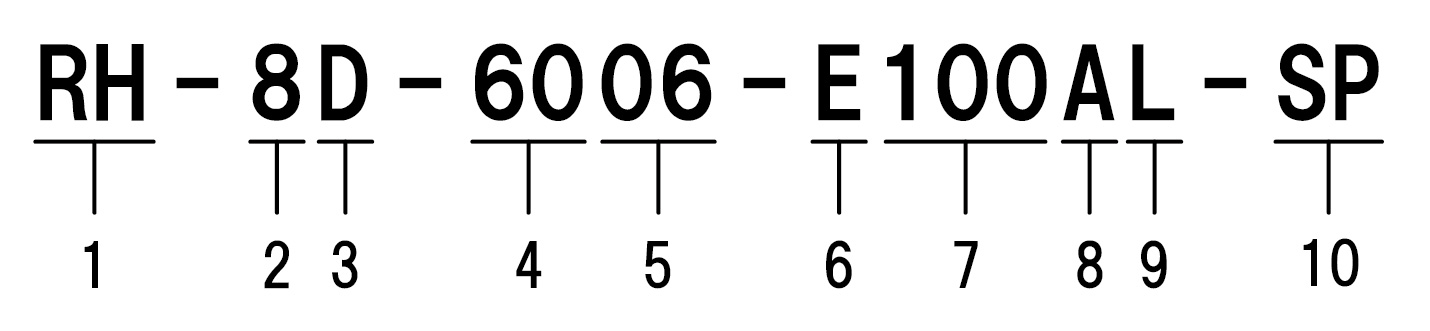

Model

  1. Model: RH series
  2. Model Nos: 5, 8, 11, 14
  3. Version symbol
  4. Output shaft rated rotational speed (r/min)
  5. Rated output (W)
    • RH-5, RH-8 x 1
    • RH-11, RH-14 x 10
  6. Option symbol: E = Incremental encoder
  7. Encoder resolution:
    • 100 = 1000p/r
    • 036 = 360p/r
  8. Encoder power supply:
    • A = +5V
    • D = +5 to 12V
  9. Encoder output type:
    • O = Open collector type
    • L = Line collector type
  10. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
Mechanical Electronic Products General Catalog for Mechanical Electronic Products
PDF
2301-26R
PDF
2301-26R
PDF
2301-26R

Click here for Catalog
