FPA Series / AC Servo Actuator / High-speed, low-profile type

New

Features

The AC Servo Actuator FPA Series combines the precision planetary gear speed reducer HarmonicPlanetary® with a dedicated AC servo motor.

- Flat and low profile
- Low loss
- High stiffness, low backlash
- Wide speed-torque characteristics allow for various operating conditions
- Quick-lock connector
- 'MELSERVO-J5' from Mitsubishi Electric Corporation supports CC-Link IE TSN, SSCNET III, and EtherCAT®


*Product images are for reference purposes.

mmd2 file for Mitsubishi Electric MR-J5 amplifier 　　Download the file here

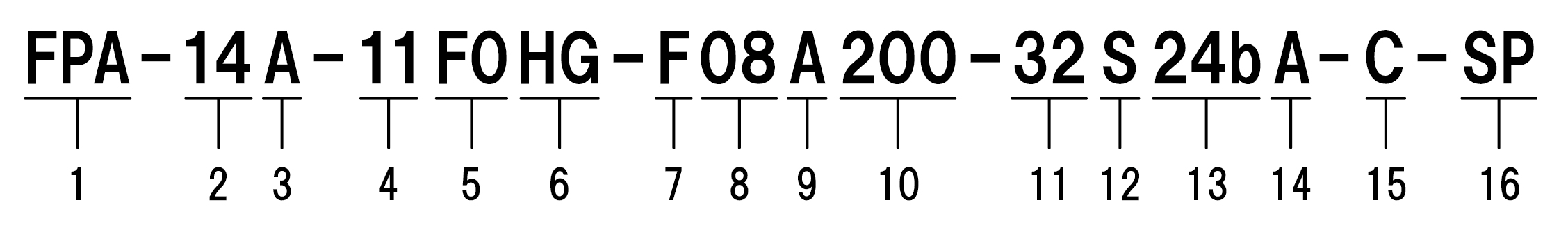

Model

  1. Model: AC servo actuator FPA series
  2. Model Nos:
    • 14, 20, 32
  3. Version symbol
  4. Reduction ratios of HarmonicDrive®:
    • Model No. 14 = 11, 15, 33
    • Model No. 20 = 5, 11
    • Model No. 32 = 21, 45
  5. Output shaft form symbol:
    • F0 = Flange output
    • J2 = Straight shaft (key-less) (No.11 is J20)
    • J6 = Straight shaft (Key center, tapped) (No.11 is J60)
  6. Speed Reducer Type:
    • HG = Planetary Speed Reducer HPG series
  7. Motor version symbol: F
  8. Motor size:
    • 08 = Model No. 14
    • 12 = Model No. 20, 32
  9. Brake (for holding):
    • A = Not equipped with a brake
  10. Input voltage of the applied servo driver:
    • 200 = AC200V
  11. Encoder format:
    • 36 = A-format compliant, Transmission rate: 4 Mbps, 1-to-1 connection/li>
  12. Encoder type:
    • S = Multi-turn absolute type (External battery backup system)
  13. Encoder resolution:
    • 24b = 24 bit (16,777,216 pulses/revolution)
  14. Encoder phase angle: Phase difference between induced voltage in motor phase U and absolute origin
    • A = 0 degrees
  15. Connector specification:
    • C = Equipped with the the standard connector
  16. Special specification:
    • No symbol = Standard product
    • SP = Special specification product
