FD-0 Series / Unit / Differential Gear (Position Adjustment)

Features

- Pancaked-type components make it is easy to install in equipment.
- Backlash-free
- A high reduction ratio allows for extremely precise position adjustments.

*Product images are for reference purposes.
*CAD images are for reference purposes.See here for form details　　←Please select “Model Number” and confirm.

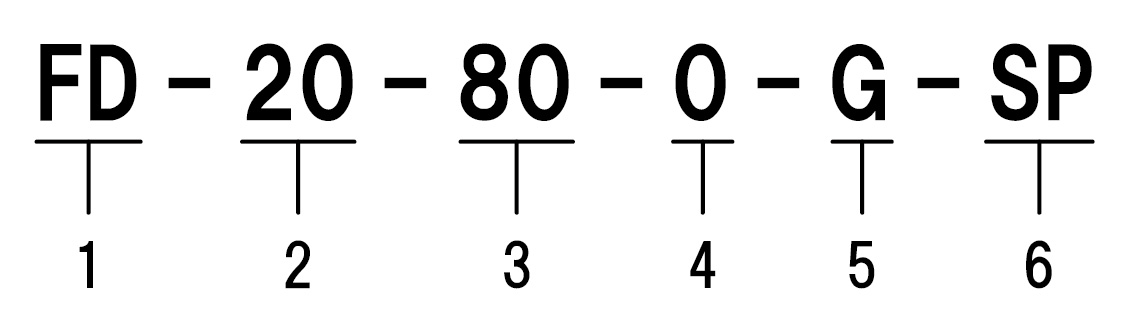

Model

  1. Model: FD series
  2. Model Nos: 20, 25, 32, 40, 50, 65, 80,100
  3. Reduction ratio: 78, 80, 88, 96, 100, 104, 110, 120, 128, 131, 132, 157, 158, 160, 194, 200, 208, 242, 258, 260, 320
  4. Model: 0 = Unit type
  5. Specifications:
    • G = Oil lubricant type
    • G-GP = Grease lubricant type
  6. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
HarmonicDrive® Reducer for precision control General catalog of HarmonicDrive®
PDF
2412-28R
PDF
2412-28R
PDF
2412-28R

Click here for Catalog

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual HarmonicDrive® Speed Reducer HarmonicDrive® Engineering Data
PDF
2107-21R

Click here for Manual

Related products

FD-2 Series / Component / Differential Gear (Position Adjustment)
An extremely compact differential that can perform fine adjustment of the phase and timing during operation.

inquiry

If you have any comments about this product, please contact us using the inquiry form or the nearest sales office.

The academic and general name of "Harmonic Drive®" is "Strain Wave Gearing", and the name "Harmonic Drive®" is a registered trademark that can only be used for products manufactured and sold by the Company.
