HPG-RA Series / Gear Head Planetary Speed Reducer / Linear Shaft Type

Features

The HarmonicPlanetary® HPG series right angle gear head type is a planetary speed reducer for a high accuracy and high stiffness servo motor.

- Installation motor capacity: 850W to 7500W

*Click here for Online HarmonicGearhead® Selection tool.


*Product images and CAD images are for reference purposes.
  See here for form details

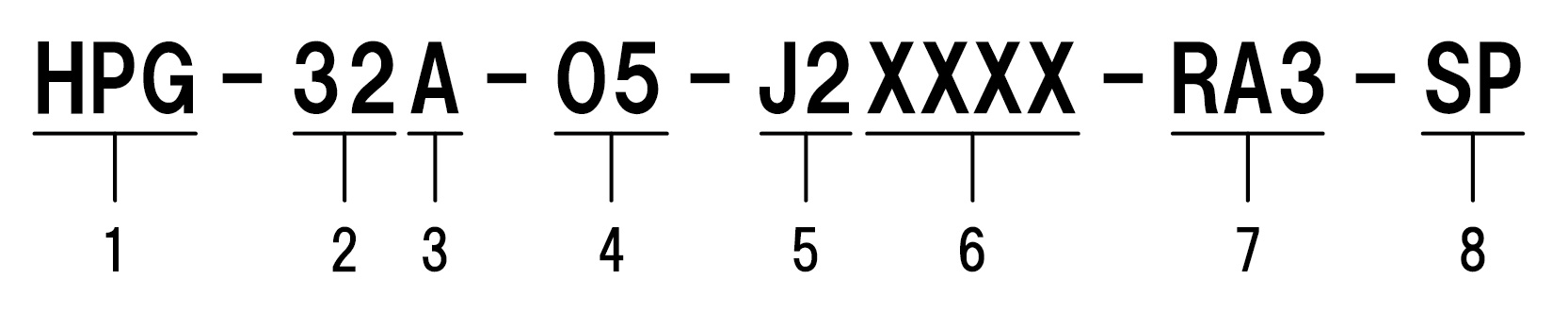

Model

  1. Model: HPG series
  2. Model Nos: 32, 50, 65
  3. Version symbol
  4. Reduction ratio:
    • Model No. 32 = 5, 11, 15, 21, 33, 45
    • Model No. 50 = 5, 11, 15, 21, 33, 45
    • Model No. 65 = 5, 12, 15, 20, 25, 40, 50
  5. Output shaft shape:
    • F0 = Flange output
    • J2 = Straight shaft (key-less)
    • J6 = Straight shaft (Key center, tapped)
    • (The shaft output of model No.65 is special specifications)
  6. Form symbol on the input side:
    • 3 to 4 digit alphabet letters
    • Motor flange and input shaft joint form symbols (will vary depending on the motor mounted)
    • (will vary depending on the motor mounted)
    • Check using the matching tool
  7. Right angle part model (Right angle unit part form symbol)
    • Refer to the motor matching table in the catalog.
  8. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
High-performance Gear Heads series High-performance Gear Heads for Servo Motors series
PDF
2403-16R
PDF
2403-16R
PDF
2403-16R

Click here for Catalog

Related products

HPG Series / Gear Head Planetary Speed Reducer / Standard Type
The standard planetary speed reducer Harmonic Planetary® model. This high accuracy planetary speed reducer has a back lash of three minutes or less with standard specifications and one minute or less with precision specifications.
HPG-R Series / Gear Head Planetary Speed Reducer / Helical Gear Type
The HPG-R Series is a high end model that achieves both a quiet design and an approximately 30% torque increase over the HPG Series via the adoption of a helical gear.
HPG-U1 Series / Gear Head Planetary Speed Reducer / Input Shaft Unit Type
The HPG-U1 Series is the HPG Series unit with an input shaft. It can be used for connections including belts, pulley inputs, gears, spline inputs.
