FHA-C mini Series / AC Servo Actuator / Compact Hollow Shaft Flat Type Collaboration with Mitsubishi Electric

Features

An AC servo actuator that combines a dedicated flat AC servo motor design with Harmonic Drive®.

- 'MELSERVO-J4' SSCNET III/H made by Mitsubishi Electric Corporation is supported.
- Incremental encoder
- Hollow structure
- Compatible with 100/200VAC and 24VDC

*Product images are for reference purposes.

Model

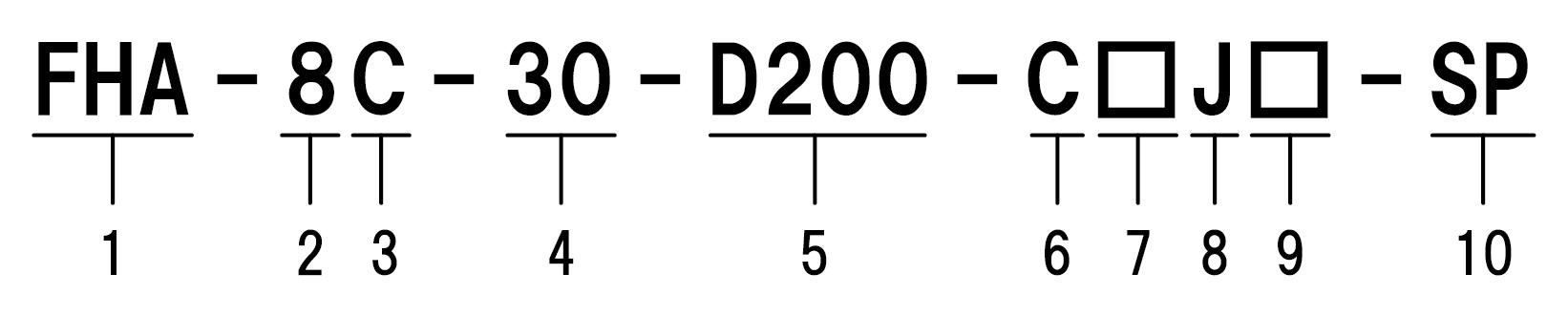

  1. Model: AC servo actuator FHA-C mini series
  2. Model Nos: 8, 11, 14
  3. Version symbol: C
  4. HarmonicDrive® reduction ratios: 30, 50, 100
  5. Encoder type, resolution: D = Incremental encoder 2000p/r
  6. With connector (standard specification)
  7. Input power supply (incremental encoder model):
    • None = AC100V or AC200V
    • E = DC24V
  8. Servo amplifier combination: J = type combined with Mitsubishi Electric servo amplifier
  9. Cable lead-out direction:
    • None = Lateral (standard specification)
    • K = Rear (option specification)
  10. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name PDF
SHA・MMA/PMA/YMA・FHA-C mini・RSF supermini Collaboration Series
【RSF supermini / FHA-C mini Series】+ Mitsubishi AC Servo MELSERVO J4 New Product News vol.28

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual FHA-C mini Series FHA-C mini Series AC Servo Actuator Manual "MELSERVO-J4" SSCNET Ⅲ / H communication system
