RSF supermini Series / AC Servo Actuator / Ultra Small Cylinder Type Collaboration with Mitsubishi Electric

Features

An AC servo actuator that combines a dedicated flat AC servo motor design with Harmonic Drive®.

- 'MELSERVO-J4' SSCNET III/H made by Mitsubishi Electric Corporation is supported.
- Adopts 4-point contact ball bearing for an even more compact and lighter design
- DC24V

*Product images are for reference purposes.

Model

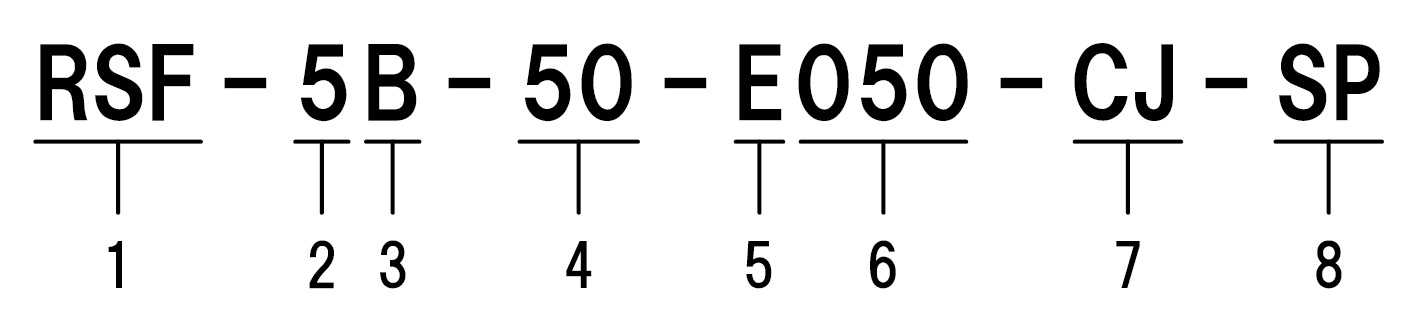

  1. Model: RSF series AC servo actuator
  2. Model Nos: 3, 5
  3. Version symbol
  4. Reduction ratios of HarmonicDrive®: 30, 50, 100
  5. Encoder type: E = Incremental encoder
  6. Encoder resolution:
    • 020 = 200p/rev
    • 050 = 500p/rev
  7. Option
    • C = With connector (Standard product)
    • BC = With brake and connector (model No. 5 only)
    • J = Type combined with Mitsubishi Electric servo amplifier
  8. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
SHA・MMA/PMA/YMA・FHA-C mini・RSF supermini Collaboration Series
PDF
2201-3R
PDF
2201-3R
【RSF supermini / FHA-C mini Series】+ Mitsubishi AC Servo MELSERVO J4 New Product News vol.28
PDF
2009-4R
PDF
2009-4R

Click here for Catalog

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual RSF supermini Series RSF supermini Series AC Servo Actuator Manual (with RSF-3C and RSF-5B) "MELSERVO-J4" SSCNET Ⅲ / H communication system
PDF
2307-3R

Click here for Manual

Related products

FHA-C mini Series / AC Servo Actuator / Compact Hollow Shaft Flat Type Collaboration with Mitsubishi Electric
The FHA-C mini series model support connection with the MELSERVO-J4 amplifiers. They can be used in SSCNET Ⅲ/H communication networks.
SHA-M Series / AC Servo Actuator / Hollow Shaft Flat Type Collaboration with Mitsubishi Electric
The SHA-M Series models support connection with MELSERVO-J4 amplifiers. They can be used in SSCNET III/H communication networks.
