RSF-B mini Series / AC Servo Actuator / Compact Cylinder Type

Features

An AC servo actuator that combines a dedicated flat AC servo motor design with Harmonic Drive®.

- DC24V

*Product images are for reference purposes.

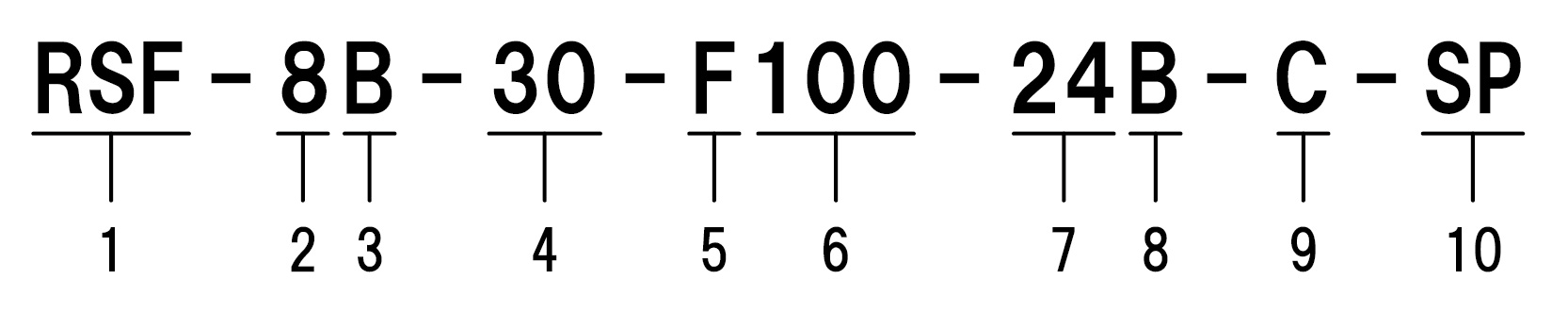

Model

  1. Model: RSF series
  2. Model Nos: 8, 11, 14
  3. Version symbol
  4. HarmonicDrive® reduction ratios: 30, 50, 100
  5. Encoder model: F = Incremental encoder + Pole sensor
  6. Encoder resolution: 100 = 1000P/rev
  7. Motor input voltage specification: DC24V
  8. Phase angle specification:
    • A = 0°
    • B = 30°
  9. Option:
    • C = With connector (Standard product)
    • None = No option available
  10. Special specification:
    • No description = Standard product
    • SP = Special specification
