RSF Series / AC Servo Actuator / Compact Cylinder Type

Features

An AC servo actuator that combines a dedicated flat AC servo motor design with Harmonic Drive®.

- Output shaft: Shaft type

*Product images and CAD images are for reference purposes.
  See here for form details

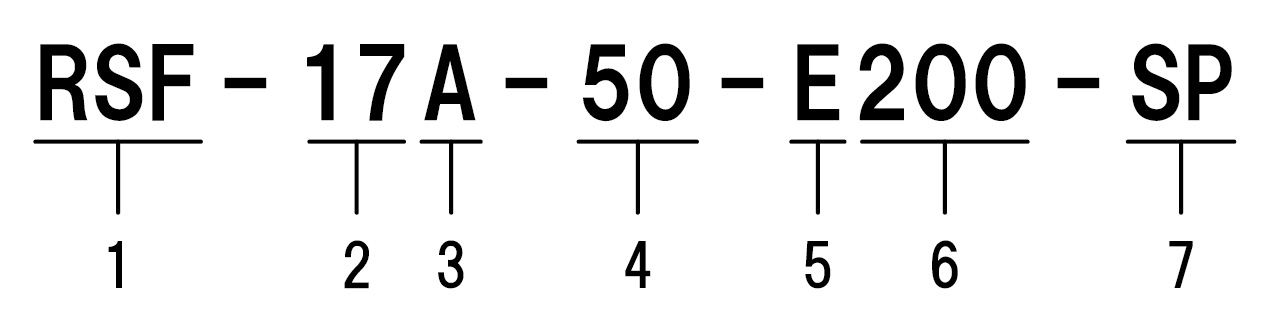

Model

  1. Model: RSF series
  2. Model Nos: 17, 20, 25, 30
  3. Version symbol: A is the latest version.
  4. HarmonicDrive® reduction ratios: 50, 100
  5. Encoder model: E = Incremental encoder
  6. Encoder resolution: 200 = 2000P/rev
  7. Special specification:
    • No description = Standard product
    • SP = Special specification
