RKF Series / AC Servo Actuator / Compact Cylinder Type

Features

An AC servo actuator that combines a dedicated flat AC servo motor design with Harmonic Drive®.

- Output shaft: Flange type

*Product images and CAD images are for reference purposes.
  See here for form details

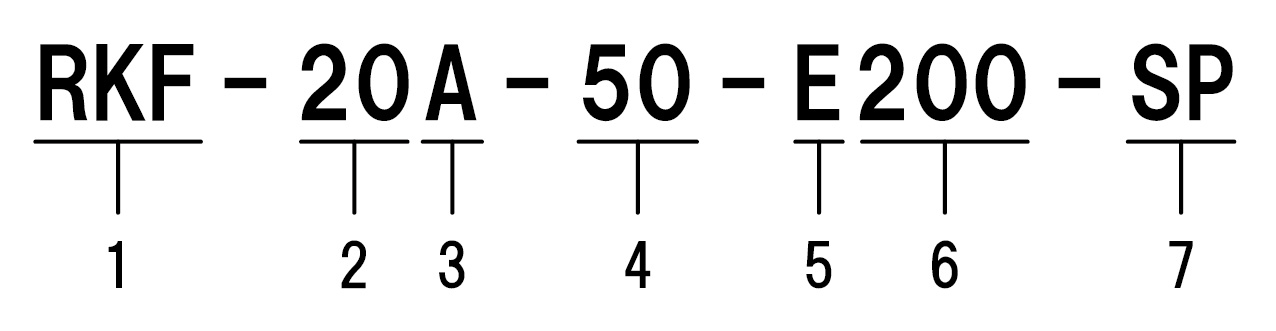

Model

  1. Model: RKF series
  2. Model Nos: 20, 25, 32
  3. Version symbol: A is the latest version.
  4. HarmonicDrive® reduction ratios: 50, 100
  5. Encoder model: E = Incremental encoder
  6. Encoder resolution: 200 = 2000P/rev
  7. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
Mechanical Electronic Products General Catalog for Mechanical Electronic Products
PDF
2301-26R
PDF
2301-26R
PDF
2301-26R

Click here for Catalog

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual HA-800A Series 100V/200V Power Supply HA-800A Series AC Servo Driver (I/O command type) Manual for SHA, FHA-Cmini, FHA-C, RSF/RKF, HMA Series
PDF
2302-20R
Manual HA-800B Series 100V/200V Power Supply HA-800B Series AC Servo Driver (MECHATROLINK-Ⅱ type) Manual compatible with MECHATROLINK-Ⅱ (for SHA, FHA-Cmini, FHA-C, RSF/RKF,HMA Series)
PDF
2302-13R
Manual HA-800C Series 100V/200V Power Supply HA-800C Series AC Servo Driver (CC-Link type) Manual compatible with CC-Link type (for SHA, FHA-Cmini, FHA-C, RSF/RKF,HMA Series)
PDF
2302-15R

Click here for Manual

Related products

RSF Series / AC Servo Actuator / Compact Cylinder Type
An output shaft type compact and high torque AC servo actuator that combines an AC servo motor and Harmonic Drive®.

inquiry

If you have any comments about this product, please contact us using the inquiry form or the nearest sales office.

The academic and general name of "Harmonic Drive®" is "Strain Wave Gearing", and the name "Harmonic Drive®" is a registered trademark that can only be used for products manufactured and sold by the Company.
