SHA Series / AC Servo Actuator / Hollow Shaft & Flat Type

Features

An AC servo actuator that combines a dedicated flat AC servo motor design with Harmonic Drive®.

- Hollow, flat structure
- Absolute encoder

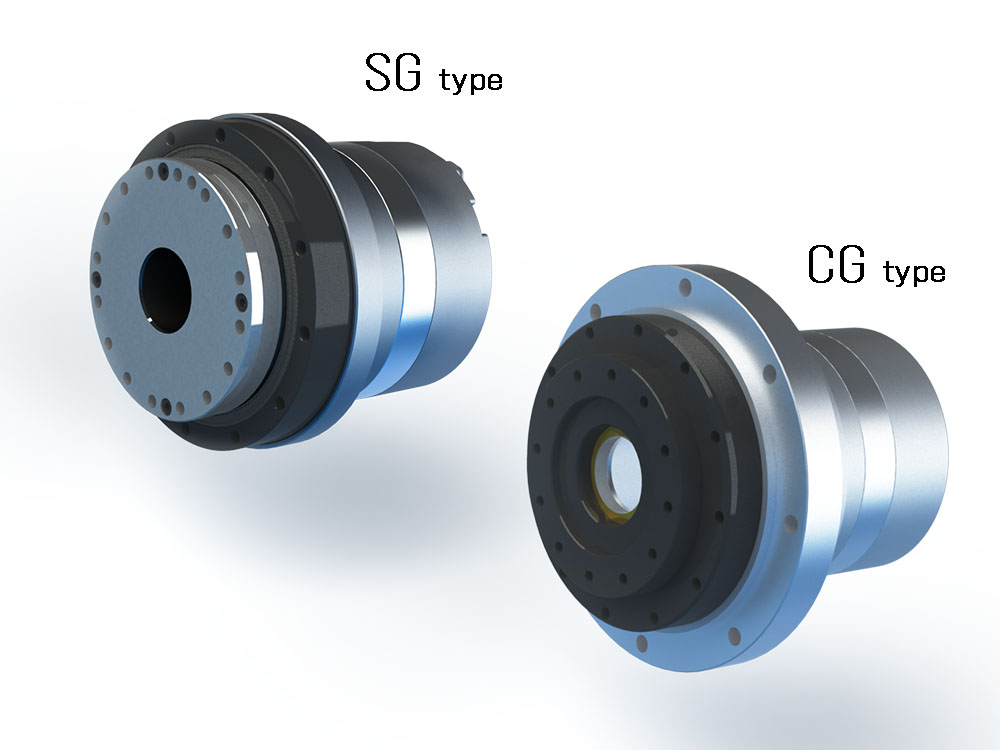

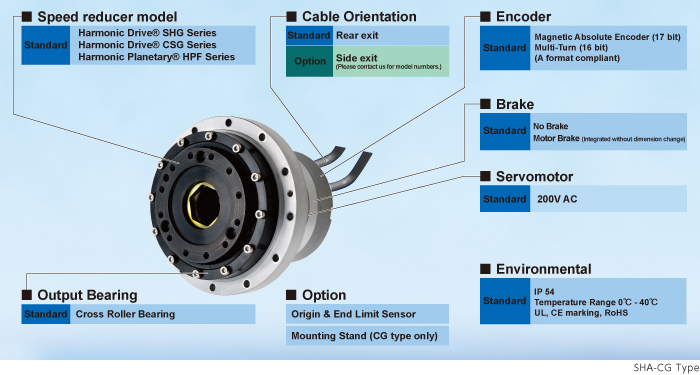

- SHA-SG: Features a compact shape
  SHA-CG: Improved output shaft surface runout precision for indexing

*Product images and CAD images are for reference purposes.
  See here for form details

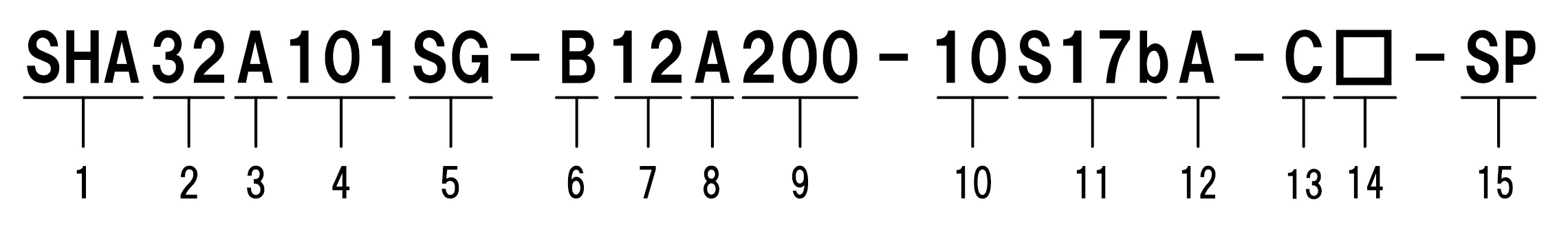

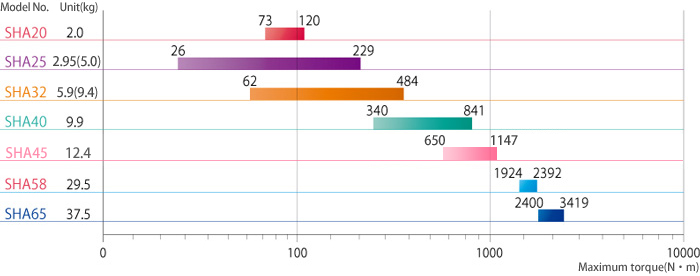

Model

  1. Model: SHA series AC servo actuator
  2. Model Nos:
    • SG type = 20, 25, 32, 40, 45, 58, 65
    • HP type = 25, 32
    • CG type = 20, 25, 32, 40
  3. Version symbol
  4. Reduction ratio (indicated by R in 1/R format):
    • SG type = 51, 81, 101, 121, 161
    • HP type = 11
    • CG type = 50, 80, 100, 120, 160
  5. Speed reducer model:
    • SG = HarmonicDrive® speed reducer SHG series
    • HP = Hollow planetary speed reducer HPF series
    • CG = HarmonicDrive® speed reducer CSG series
  6. Motor version symbol:
    • A = Model Nos 58, 65
    • B = Model Nos 25, 32, 40
    • C = Model Nos 20
    • D = Model Nos 45
  7. Motor size:
    • 08 = Model No. 20
    • 09 = Model No. 25
    • 12 = Model No. 32
    • 15 = Model No. 40
    • 16 = Model No. 45
    • 21 = Model Nos 58, 65
  8. Brake:
    • A = Without brake
    • B = With brake
  9. Applicable servo driver input voltage:
    • 100 = AC100V (Model No.25 only)
    • 200 = AC200V
  10. Encoder format:
    • 10 = Conforming to A format, transmission rate: 2.5 Mbps, 1-on-1 connection, with backup capacitor (Model No.20 only)
    • 30 = Conforming to A format, transmission rate: 2.5 Mbps, 1-on-1 connection, without backup capacitor
  11. Encoder type:
    • S = Multi-turn absolute type
  12. Encoder resolution:
    • 17b = 17 bit (131072 pulses/revolution)
  13. Encoder phase angle: Phase difference between induced voltage in motor phase U and absolute origin
    • A = 0 degrees
  14. Connector specification:
    • C = With standard connector
    • N = Without connector
  15. Option symbol:
    • L = With near origin and end limit sensors
    • Y = Cable taken out from side
    • V = With stand (CG type only)
    • S = Output shaft single revolution absolute model (CG type only)
      * Please contact us for option-compatible combinations.
  16. Special specification:
    • No description = Standard product
    • SP = Special specification product
