The FHA-C mini Series LW Type combines a Harmonic Drive® gear reducer with a custom-designed ultra-flat AC servo motor in a single compact package.
Its lightweight, low-profile design makes it ideal for space- and weight-constrained applications.
- Compatible with 200VAC
- Compatible with Mitsubishi Electric's MELSERVO-J5 servo amplifier system networks: CC-Link IE TSN, SSCNET III/H, and EtherCAT®
*Product images are for reference purposes.

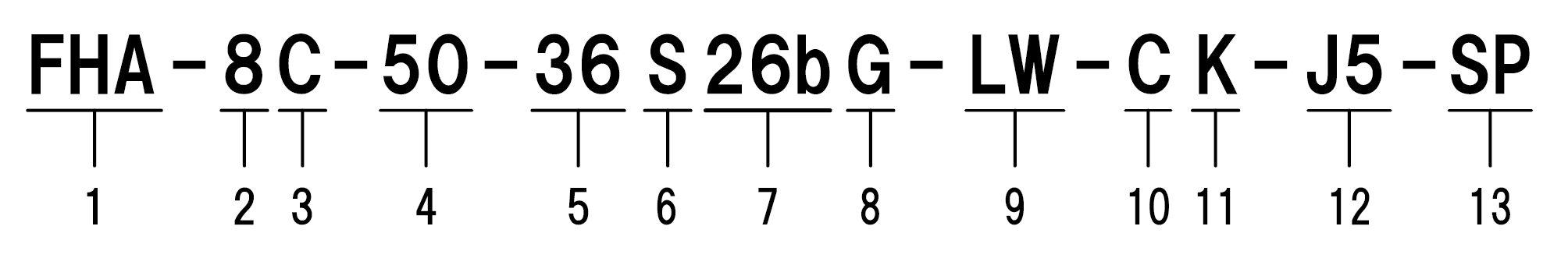

- Model: AC servo actuator FHA-C mini series
- Model Nos: 8, 11, 14
- Version symbol:C
- HarmonicDrive® reduction ratios: 50, 100
- Encoder type:
- 36 = Conforming to Mitsubishi format, transmission rate: 2.5 Mbps, 1-on-1 connection
- Encoder method:
- S = Multi-turn absolute method (external battery backup type)
- Encoder resolution:
- 26b = 26-bit (67108864 pulses/revolution)
- Input power supply voltage:
- Product specifications:
- LW = Lightweight specification
- Connector specification:
- C = With standard connector
- Cable lead-out direction:
- Blank = Standard, lateral
- K = Rear
- Y = Lateral (opposite)
Note:For cable outlet direction options, please refer to the technical documentation.
- Combined servo amplifier symbol:
- Special specification:
- No description = Standard product
- SP = Special specification
