FHA-C mini Series LW Type / AC Servo Actuator / Compact, Lightweight & Flat Type

New

Features

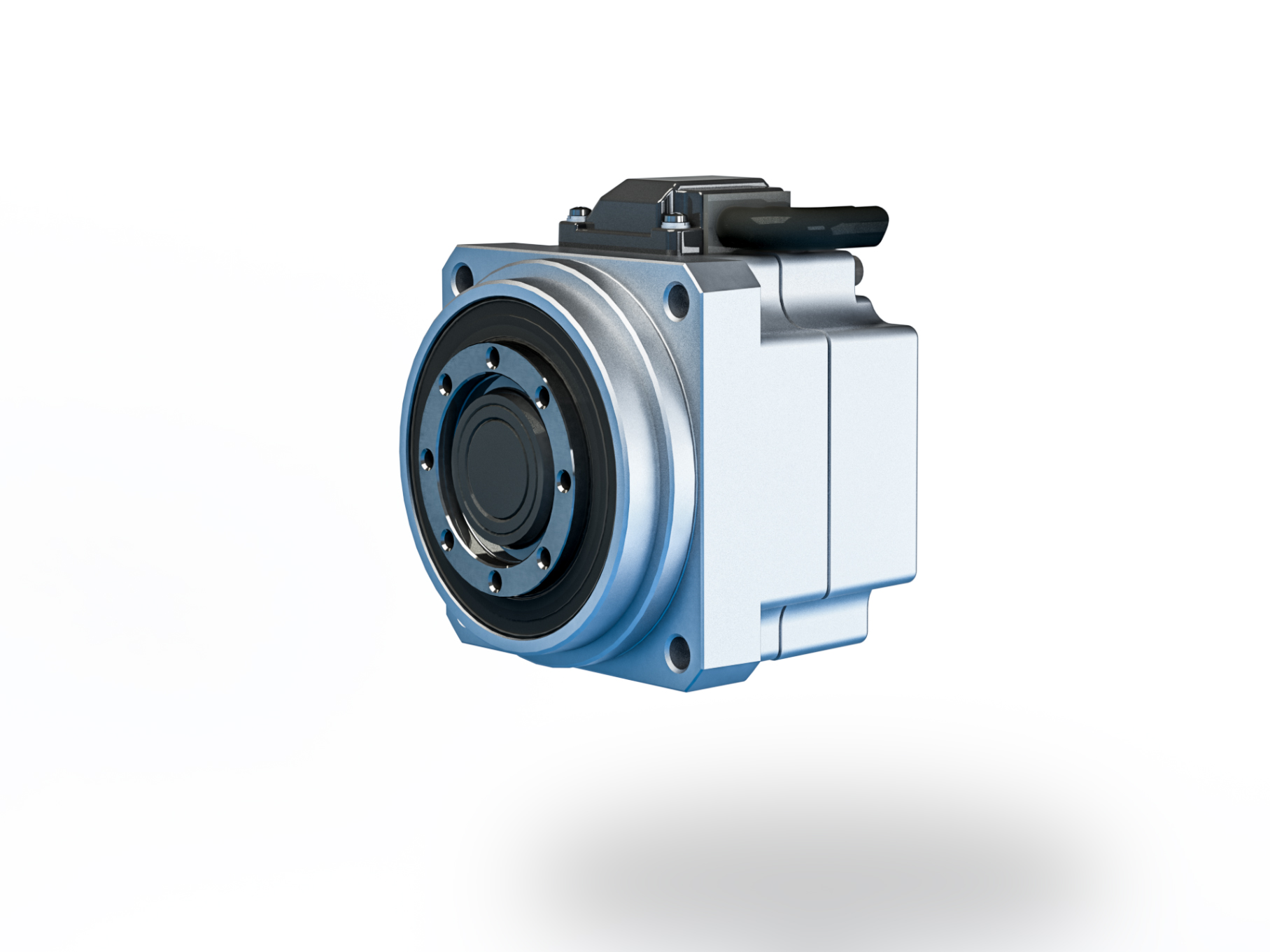

The FHA-C mini Series LW Type combines a Harmonic Drive® gear reducer with a custom-designed ultra-flat AC servo motor in a single compact package.
Its lightweight, low-profile design makes it ideal for space- and weight-constrained applications.

- Compatible with 100/200VAC and 24VDC
- Supports operation with the latest HA-900A driver


*Product images are for reference purposes.

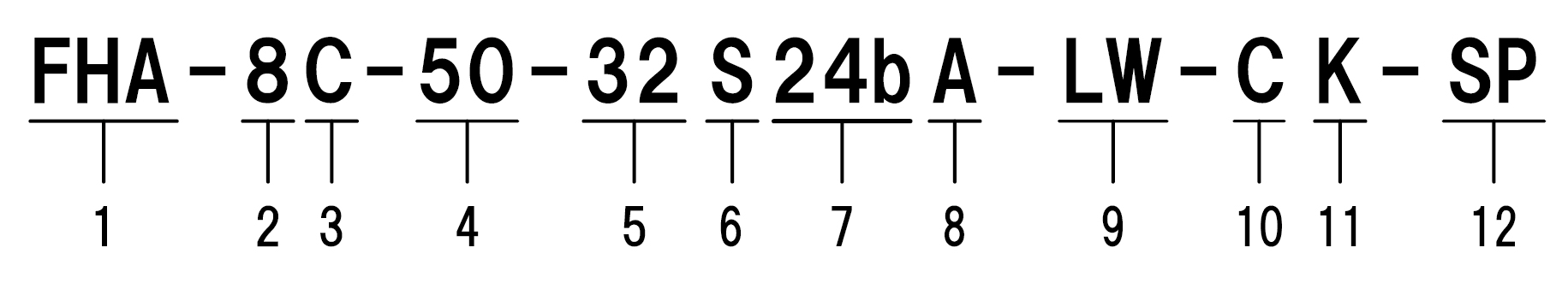

Model

  1. Model: AC servo actuator FHA-C mini series
  2. Model Nos: 8, 11, 14
  3. Version symbol:C
  4. HarmonicDrive® reduction ratios: 50, 100
  5. Encoder type:
    • 32 = Compliant with A-format®*, transmission rate: 4 Mbps, 1-on-1 connection
      • *: A-format is a registered trademark of Nikon Corporation.
  6. Encoder method:
    • S = Multi-turn absolute method (external battery backup type)
  7. Encoder resolution:
    • 24b = 24-bit (16777216 pulses/revolution)
  8. Input power supply voltage:
    • Ａ = AC100V
    • G = AC200V
  9. Product specifications:
    • LW = Lightweight specification
  10. Connector specification :
    • C = With standard connector
  11. Cable lead-out direction:
    • Blank = Standard, lateral
    • K = Rear
    • Y = Lateral (opposite)
      • Note:For cable outlet direction options, please refer to the technical documentation.
  12. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
【FHA-C mini Series LW Type】+ Panasonic Corporation MINAS A6N/A6B/A6S New Product News vol.56
PDF
2604-0R
PDF
2604-0R
【FHA-C mini Series LW Type】+ Mitsubishi AC servo MELSERVO J5 New Product News vol.55
PDF
2604-0R
PDF
2604-0R
【HA-900A Series】 New Product News vol.50
PDF
2503-0R
PDF
2503-0R
FHA-C mini Series LW Type New Product News vol.48
PDF
2603-0R
PDF
2603-0R

Click here for Catalog

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual FHA-C mini Series LW Type FHA-C mini Series LW Type AC Servo Actuator Manual
PDF
2604-0R

Click here for Manual

Related products

FHA-C mini Series / AC Servo Actuator / Compact Hollow Shaft & Flat Type
The FHA-C mini Series of AC servo actuators are incomparably thin and compact. They even have a hollow structure. This allows high torque and high positional accuracy operation despite the compact size.
FHA-C mini Series LW Type / AC Servo Actuator / Compact, Lightweight & Flat Type Collaboration with Mitsubishi Electric
The FHA-C mini Series LW Type is a compact AC servo actuator designed with a focus on lightweight construction and a low-profile form factor. This model is compatible with MELSERVO-J5 servo amplifiers. It can be used on communication networks including CC-Link IE TSN, SSCNET III/H, and EtherCAT®.
FHA-C mini Series LW Type / AC Servo Actuator / Compact, Lightweight & Flat Type Collaboration with Panasonic Corporation
The FHA-C mini Series LW Type is a compact AC servo actuator designed with a focus on lightweight construction and a low-profile form factor. This model is compatible with MINAS-A6 and MINAS-A5 servo amplifiers. It can be used on communication networks including RTEX and EtherCAT®.

inquiry

If you have any comments about this product, please contact us using the inquiry form or the nearest sales office.

The academic and general name of "Harmonic Drive®" is "Strain Wave Gearing", and the name "Harmonic Drive®" is a registered trademark that can only be used for products manufactured and sold by the Company.
