LAH-46 Series / DC Servo Actuator/Medium Driving Force & Positioning Type

Features

The LAH series are small-sized linear actuators with high resolution and high driving force.

- Max. driving force: 390N (40kgf)
- Resolution: 0.069μm
- Stroke: 10mm, 30mm
- Maximum feed speed: 3.7mm/s
- Repeatability: ±0.5μm/1mm stroke
- Lost motion: 5μm/1mm stroke
- The drive motor can be changed to a stepping motor.

*Product images and CAD images are for reference purposes.
  See here for form details

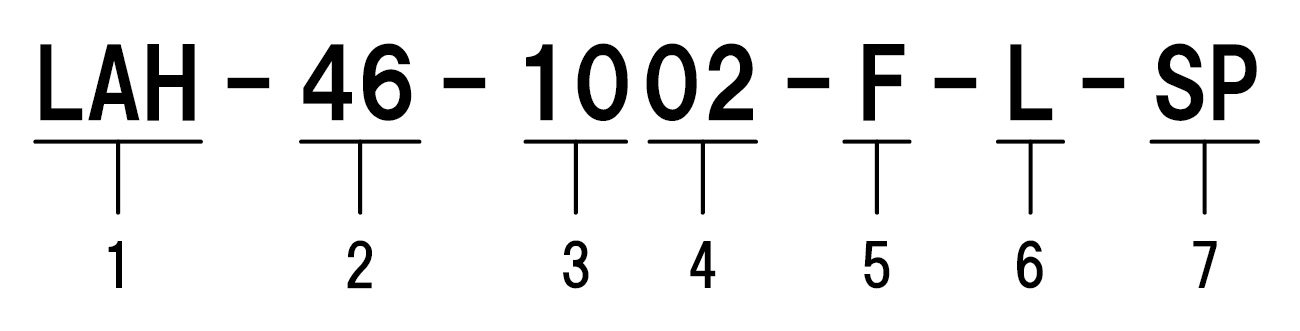

Model

  1. Model: LAH series
  2. Size: 46, 80
  3. Stroke (mm): 10, 30 (LAH-46), 50 (LAH-80)
  4. Rated driving force (N): 200 (LAH-46), 2000 (LAH-80)
  5. Mounting type: F = Flange mounting type
  6. Drive motor:
    • Abbreviation = DC servo motor drive (Open collector type)
    • L = DC servo motor drive (Line collector type)
  7. Special specification:
    • No description = Standard product
    • SP = Special specification
