CSF-LW Series / Unit / Standard & Lightweight Type

Features

Its newly designed shape and use of lightweight material makes it about 30% lighter.
The unit type features a CSF component outfitted with high stiffness bearings (cross roller bearings).
Select the optimal product from a wide range of sizes and speed ratios.

Click here for the ultra lightweight type CSF-ULW Series

*Product images are for reference purposes.

Model

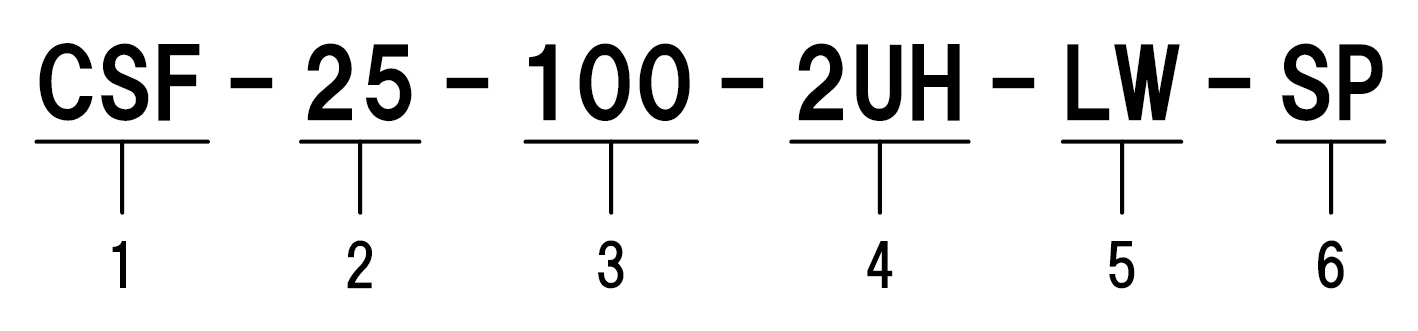

  1. Model: CSF series
  2. Model Nos: 14, 17, 20, 25, 32, 40, 45, 50, 58, 65
  3. Reduction ratio: 30, 50, 80, 100, 120, 160
  4. Model: 2UH = Unit type
  5. Specifications:
  6. Special specification:
    • No description = Standard product
    • SP = Special specification
