SHF Series / Simple Unit / Standard Type Unit with Hollow Structure

Features

The simple hollow structure unit type features an SHF component outfitted with high stiffness bearings (cross roller bearings) only.

*Product images and CAD images are for reference purposes.
  See here for form details

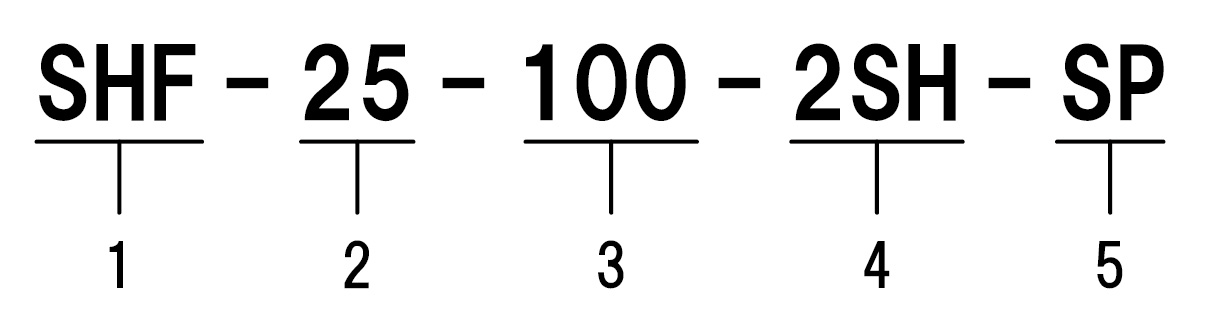

Model

  1. Model: SHF series
  2. Model Nos: 14, 17, 20, 25, 32, 40, 45, 50, 58, 65
  3. Reduction ratio: 30, 50, 80, 100, 120, 160
  4. Model:
  5. Special specification:
    • No description = Standard product
    • SP = Special specification
