SHD-LW Series / Unit / Super Flat & Lightweight Type

Features

The unit type features an SHD Series component outfitted with high stiffness bearings (cross roller bearings) for a lightweight and hollow structure design.

*Product images and CAD images are for reference purposes.
  See here for form details

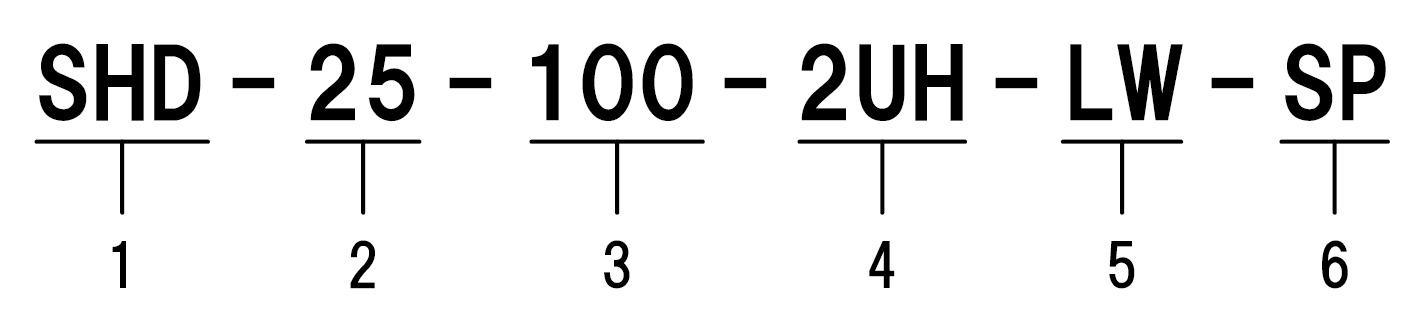

Model

  1. Model: SHD series
  2. Model Nos: 14, 17, 20, 25, 32, 40
  3. Reduction ratio: 50, 80, 100, 120, 160
  4. Model: 2UH = Unit type
  5. Specification: LW = Lightweight type
  6. Special specification:
    • No description = Standard product
    • SP = Special specification
