SHF-LW Series / Unit / Standard & Lightweight Type

Features

Its newly designed shape and use of lightweight material makes it about 20% lighter.
The hollow structure unit type features an SHF component outfitted with high stiffness bearings (cross roller bearings).

*Product images are for reference purposes.
*CAD images are for reference purposes.See here for form details　　←Please select “Model Number” and confirm.

Model

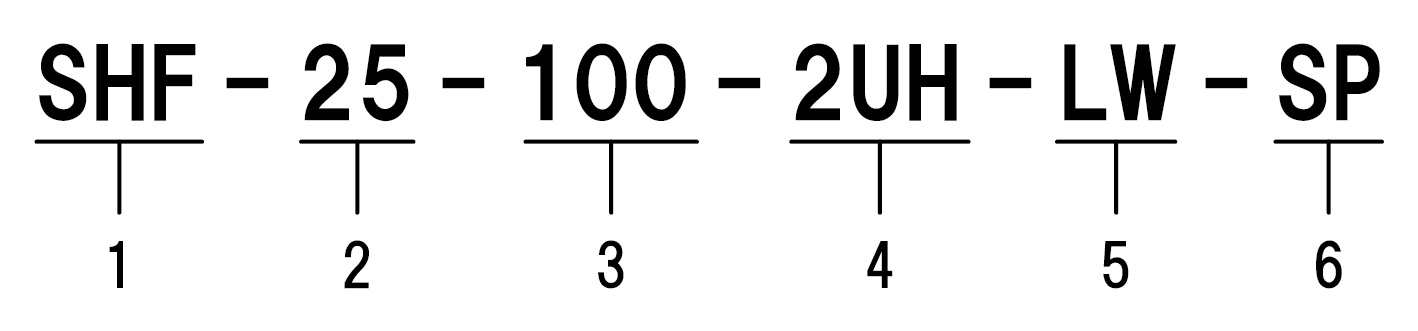

  1. Model: SHF series
  2. Model Nos: 11, 14, 17, 20, 25, 32, 40, 45, 50, 58
  3. Reduction ratio: 30, 50, 80, 100, 120, 160
  4. Model: 2UH = Hollow unit type
  5. Type: LW = Lightweight type
  6. Special specification:
    • No description = Standard product
    • SP = Special specification
