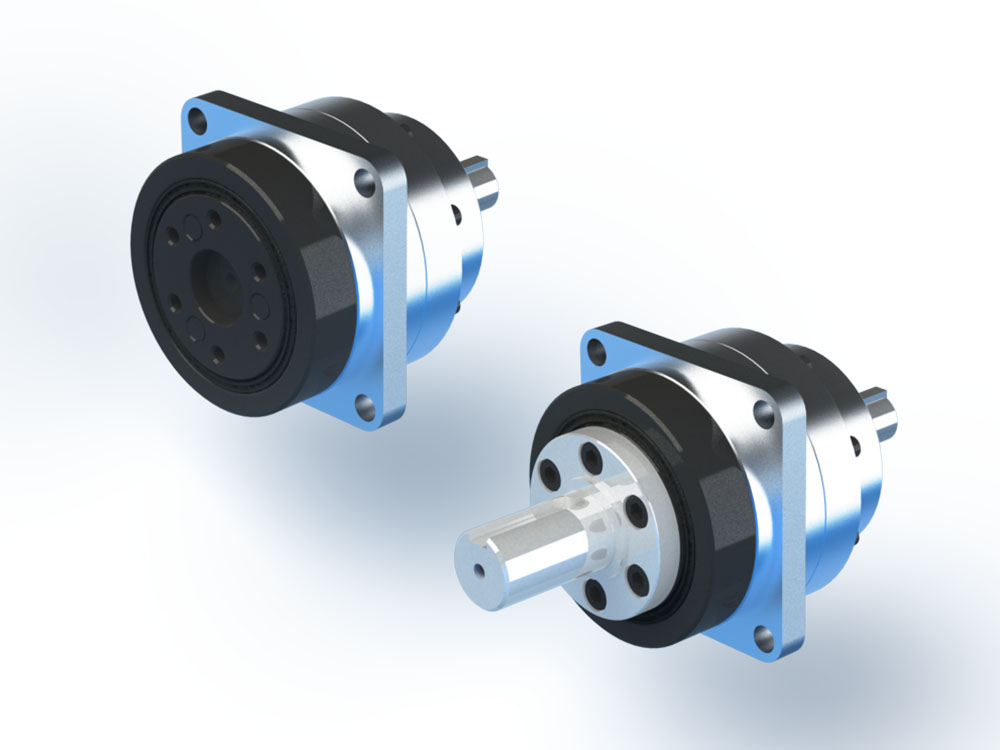

HPGP Series / Gear Head Planetary Speed Reducer / High Torque Type

Features

The HarmonicPlanetary® HPG series gear head type is a planetary speed reducer for servomotors featuring high accuracy and high stiffness.
Delivers approximately 33% more torque than the HPG series planetary gear speed reducer.

- Backlash standard of less than 3 arc min. (Special product: 1 arc min or less, Model HPGP-14A or later)

*Click here for Online HarmonicGearhead® Selection tool.

*Product images are for reference purposes.

Model

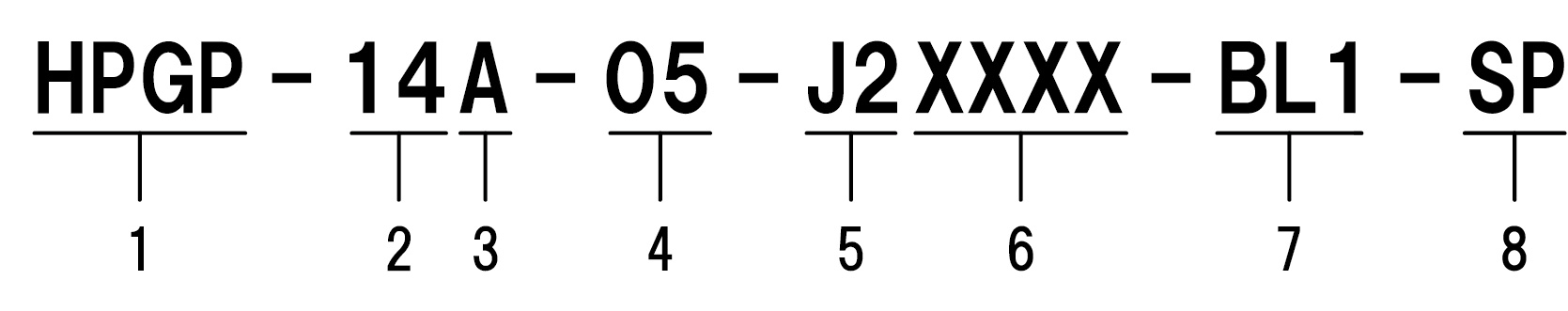

  1. Model: HPGP series
  2. Model Nos.: 11, 14, 20, 32, 50, 65
  3. Version symbol
  4. Reduction ratio:
    • Model No. 11 = 5, 21, 37, 45
    • Model No. 14 = 5, 11, 15, 21, 33, 45
    • Model No. 20 = 5, 11, 15, 21, 33, 45
    • Model No. 32 = 5, 11, 15, 21, 33, 45
    • Model No. 50 = 5, 11, 15, 21, 33, 45
    • Model No. 65 = 4, 5, 12, 15, 20, 25
  5. Output shaft shape:
    • F0 = Flange output
    • J2 = Straight shaft (key-less) (No.11 is J20)
    • J6 = Straight shaft (Key center, tapped) (No.11 is J60)
    • (The shaft output of model No.65 is special specifications)
  6. Form symbol on the input side:
    • 3 to 6 digit alphabet letters
    • Motor flange and input shaft joint form symbols (will vary depending on the motor mounted)
    • Check using the matching tool
  7. Additional codes:
    • BL1 = Backlash of less than 1 arc-min., special specification (Model Nos.14-65)
    • D = Input side shield bearing is possible to change contact sealed type (DDU)
    • NR6 = Silent specification, backlash of less than 6 arc-min (Model Nos. 14-50)
  8. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
High-performance Gear Heads series High-performance Gear Heads for Servo Motors series
PDF
2403-16R
PDF
2403-16R
PDF
2403-16R

Click here for Catalog
