HPF Series / Gear Head Planetary Speed Reducer / Hollow Shaft Unit Type

Features

The planetary reducer Harmonic Planetary®, which features high accuracy and high rigidity, has a hollow structure.

*Click here for Online HarmonicGearhead® Selection tool.


*Product images and CAD images are for reference purposes.
  See here for form details

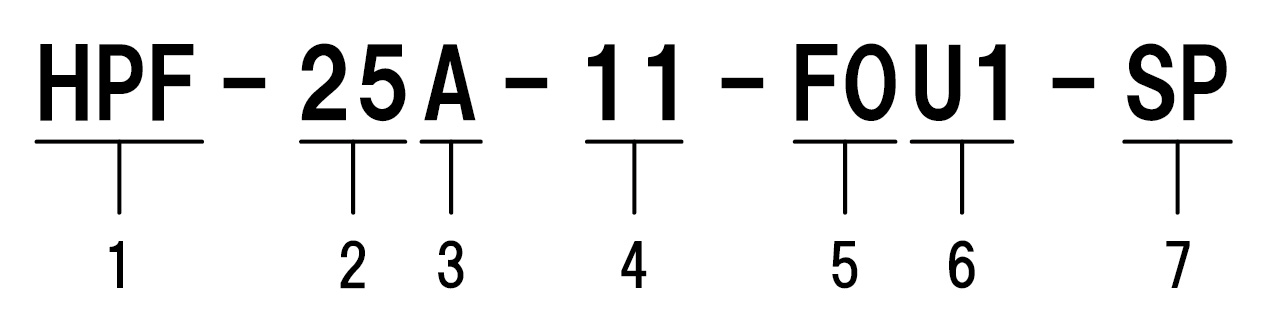

Model

  1. Model: HPF series
  2. Model Nos.: 25, 32
  3. Version symbol: A
  4. Reduction ratio: 11
  5. Output shaft shape: F0 = Flange output
  6. Input shaft shape: U1 = Input side flange type
  7. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
High-performance Gear Heads series High-performance Gear Heads for Servo Motors series
PDF
2403-16R
PDF
2403-16R
PDF
2403-16R

Click here for Catalog

Related products

HPG-R Series / Gear Head Planetary Speed Reducer / Helical Gear Type
The HPG-R Series is a high end model that achieves both a quiet design and an approximately 30% torque increase over the HPG Series via the adoption of a helical gear.

inquiry

If you have any comments about this product, please contact us using the inquiry form or the nearest sales office.

The academic and general name of "Harmonic Drive®" is "Strain Wave Gearing", and the name "Harmonic Drive®" is a registered trademark that can only be used for products manufactured and sold by the Company.
