FHA-C mini Series / AC Servo Actuator / Compact Hollow Shaft & Flat Type

Features

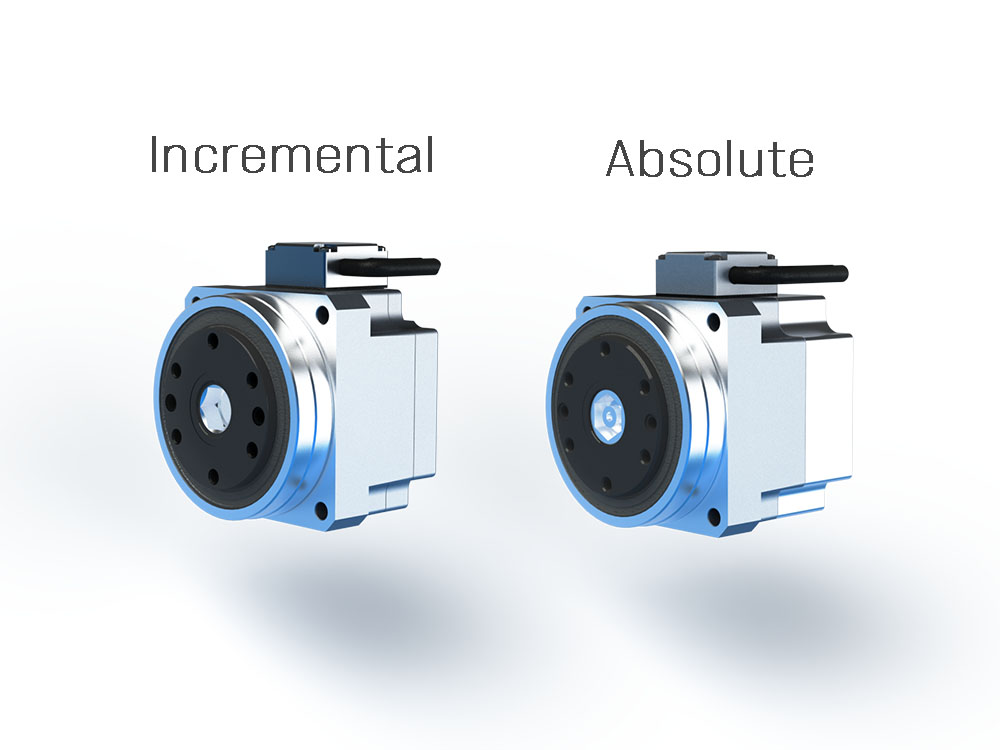

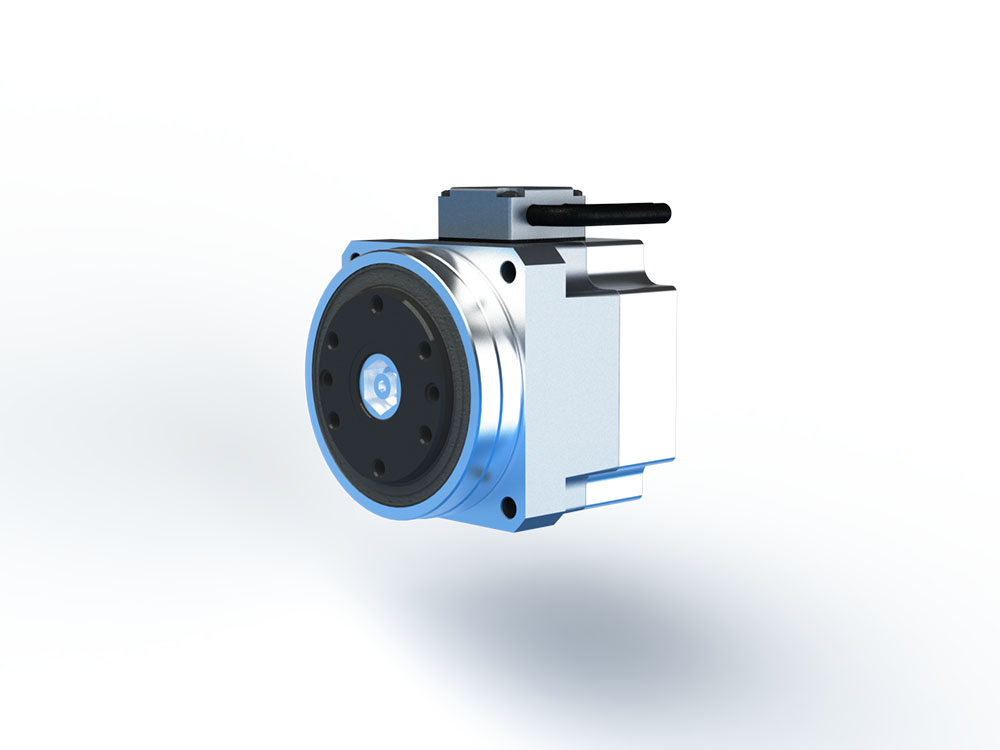

An AC servo actuator that combines a dedicated flat AC servo motor design with Harmonic Drive®.

- Absolute encoder/Incremental encoder
- Hollow structure (incremental encoder only)
- Compatible with 100/200VAC and 24VDC

*Product images and CAD images are for reference purposes.
  See here for form details

Model

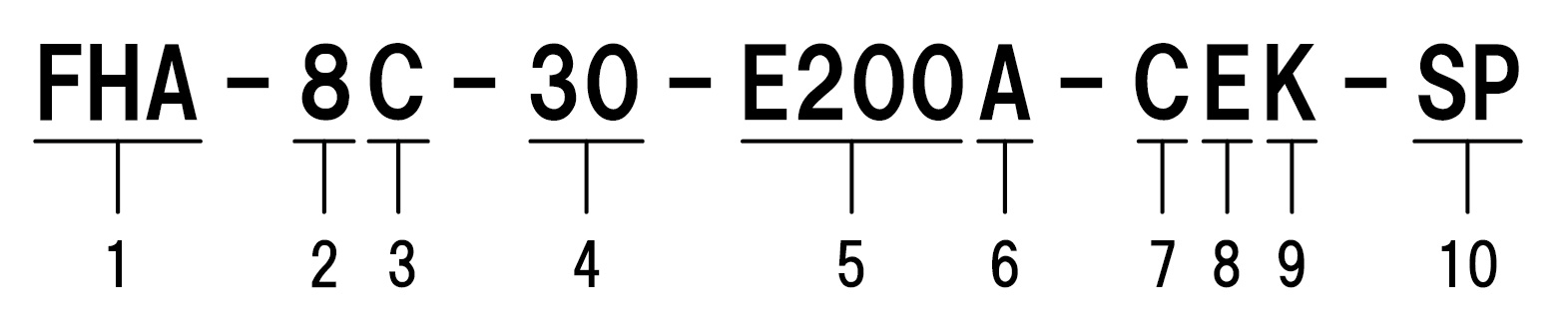

  1. Model: AC servo actuator FHA-C mini series
  2. Model Nos: 8, 11, 14
  3. Version symbol:C
  4. HarmonicDrive® reduction ratios: 30, 50, 100
  5. Encoder type, resolution
    • E200 = Incremental encoder 2000p/r
    • 12S17b = Absolute encoder 131072p/r (17bit)
  6. Input power supply (absolute encoder model):
    • A = AC100V
    • G = AC200V
    • E = DC24V
  7. With connector (standard specification)
  8. Input power supply (incremental encoder model):
    • None = AC100V or AC200V
    • E = DC24V
  9. Cable lead-out direction:
    • None = Lateral (standard specification)
    • K = Rear (option specification / for Incremental encoder)
  10. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
Mechanical Electronic Products General Catalog for Mechanical Electronic Products
PDF
2301-26R
PDF
2301-26R
PDF
2301-26R
SHA・MMA/PMA/YMA・FHA-C mini・RSF supermini Collaboration Series
PDF
2201-3R
PDF
2201-3R
CSF supermini/CSF-mini・FHA-C mini・RSF supermini Compact Variation
PDF
1906-2R
PDF
1906-2R
【FHA-C mini Series】+ Panasonic Corporation MINAS A6N/A6B/A6S New Product News vol.41
PDF
2109-2R
PDF
2109-2R
【RSF supermini / FHA-C mini Series】+ Mitsubishi AC Servo MELSERVO J4 New Product News vol.28
PDF
2009-4R
PDF
2009-4R

Click here for Catalog

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual FHA-C mini Series FHA-C mini Series AC Servo Actuator Manual
PDF
2404-9R
Manual FHA-C mini Series FHA-C mini Series AC Servo Actuator Manual "MELSERVO-J4" SSCNET Ⅲ / H communication system
PDF
2404-5R
Manual FHA-C mini Series FHA-C mini Series AC Servo Actuator Manual compatible with Panasonic MINAS A6 series
PDF
2107-1R
Manual HA-800A Series 100V/200V Power Supply HA-800A Series AC Servo Driver (I/O command type) Manual for SHA, FHA-Cmini, FHA-C, RSF/RKF, HMA Series
PDF
2302-20R
Manual HA-680 Series AC Servo Driver for 24 V DC Power Supply Manual For FHA-8C, 11C, 14C/RSF-3C,5B/8B,11B, and 14B
PDF
2303-18R
Manual HA-800B Series 100V/200V Power Supply HA-800B Series AC Servo Driver (MECHATROLINK-Ⅱ type) Manual compatible with MECHATROLINK-Ⅱ (for SHA, FHA-Cmini, FHA-C, RSF/RKF,HMA Series)
PDF
2302-13R
Manual HA-800C Series 100V/200V Power Supply HA-800C Series AC Servo Driver (CC-Link type) Manual compatible with CC-Link type (for SHA, FHA-Cmini, FHA-C, RSF/RKF,HMA Series)
PDF
2302-15R
Manual HA-680ML Series AC Servo Driver for 24 VDC Power Supply Manual compatible with MECHATROLINK (For FHA-8C, 11C, 14C/RSF-3C, 5B, 8B, 11B, and 14B)
PDF
2303-8R

Click here for Manual

Related products

FHA-C mini Series / AC Servo Actuator / Compact Hollow Shaft Flat Type Collaboration with Mitsubishi Electric
The FHA-C mini series model support connection with the MELSERVO-J4 amplifiers. They can be used in SSCNET Ⅲ/H communication networks.
FHA-C mini Series / AC Servo Actuator / Compact Hollow Shaft Flat Type Collaboration with Panasonic Corporation
The models support connection with MINAS-A6 and A5 amplifiers. They can be used in RTEX and EtherCAT communication networks.
