FLA Series / Brushless DC Actuator / Super Flat & Lightweight Type

New

Features

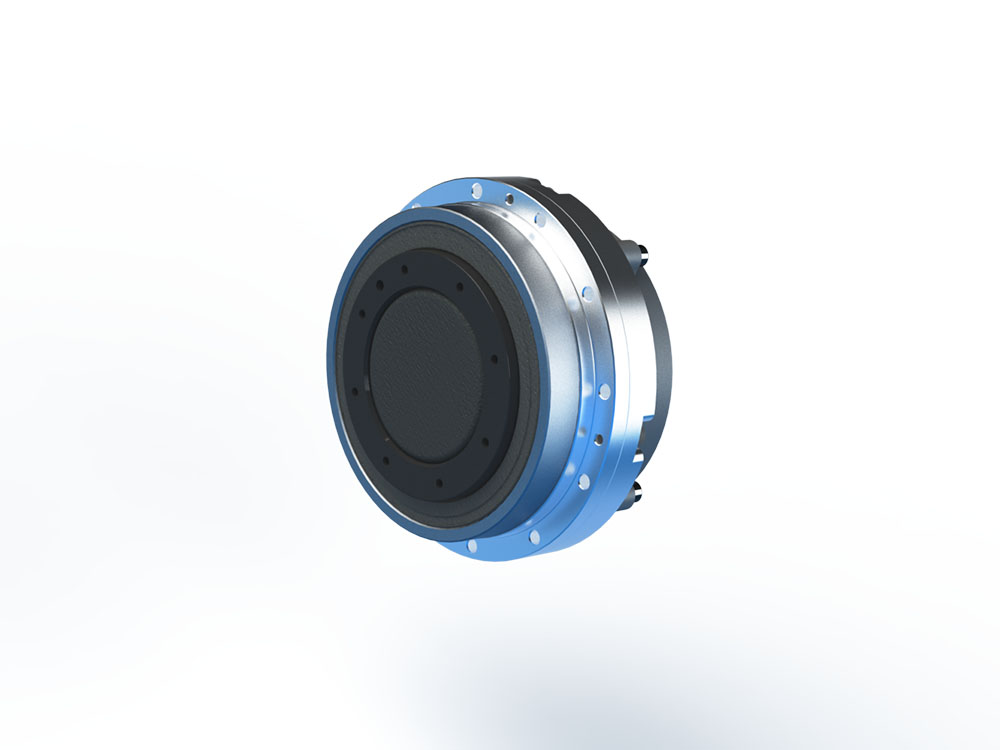

A new ultra flat/lightweight brushless DC actuator with compact/high output brushless DC motor and high accuracy/high performance speed reducer.

*Product images are for reference purposes.

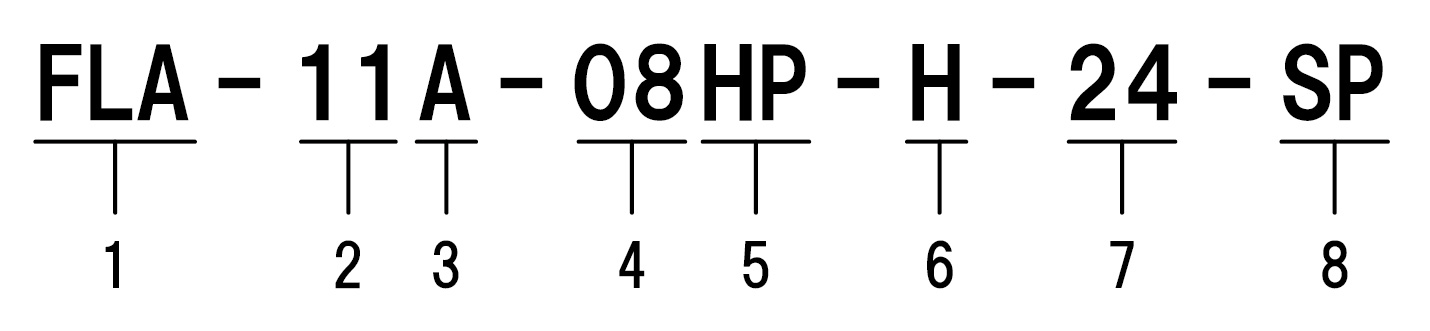

Model

  1. Model: Brushless DC Actuator FLA series
  2. Model Nos: 11, 14, 17, 20
  3. Version symbol
  4. Output shaft rated rotational speed (r/min):
    • HarmonicPlanetary® speed reducer
    • 08 = 1/8 (Model Nos: 11, 14)
    • 09 = 1/9 (Model Nos: 17, 20)
    • HarmonicDrive® strain wave gear speed reducer
    • 50 = 1/50 (Model Nos: 11, 14, 17, 20)
    • 100 = 1/100 (Model Nos: 11, 14, 17)
  5. Speed reducer type:
    • HP = HarmonicPlanetary® speed reducer
    • FB = HarmonicDrive® strain wave gear speed reducer
  6. Sensor type: H = Hall sensor
  7. Input power supply:
    • 24 = DC24V
    • 48 = DC48V
  8. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
【FLA Series】 New Product News vol.31 2111-6R 2111-6R

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual FLA Series Technical Data of the Brushless DC Actuator FLA Series

Related products

The HPG-R Series is a high end model that achieves both a quiet design and an approximately 30% torque increase over the HPG Series via the adoption of a helical gear.

inquiry

If you have any comments about this product, please contact us using the inquiry form or the nearest sales office.

The academic and general name of "Harmonic Drive®" is "Strain Wave Gearing", and the name "Harmonic Drive®" is a registered trademark that can only be used for products manufactured and sold by the Company.
