FHA-C mini Series LW Type / AC Servo Actuator / Compact, Lightweight & Flat Type Collaboration with Panasonic Corporation

New

Features

The FHA-C mini Series LW Type combines a Harmonic Drive® gear reducer with a custom-designed ultra-flat AC servo motor in a single compact package.
Its lightweight, low-profile design makes it ideal for space- and weight-constrained applications.

- Compatible with 200VAC
- - Compatible with Panasonic Corporation's MINAS A6 Series servo amplifier system networks: RTEX and EtherCATreg;


*Product images are for reference purposes.

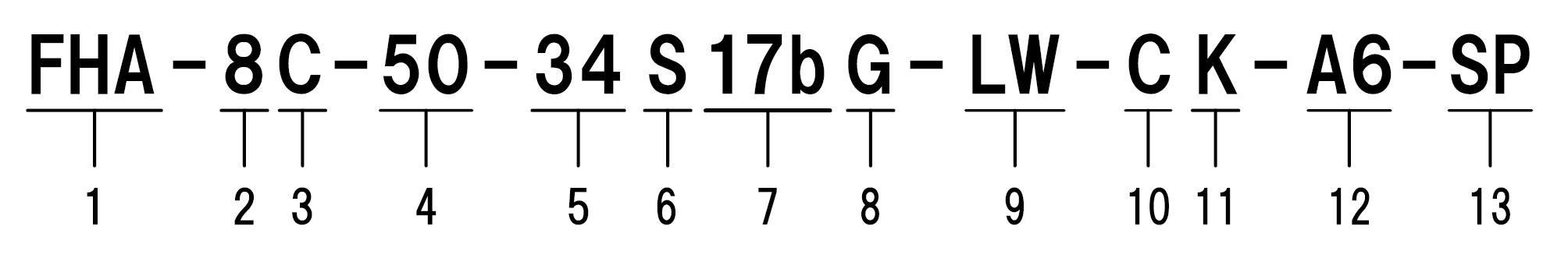

Model

  1. Model: AC servo actuator FHA-C mini series
  2. Model Nos: 8, 11, 14
  3. Version symbol: C
  4. HarmonicDrive® reduction ratios: 50, 100
  5. Encoder type:
    • 34 = MINAS-supported format compliant, transmission rate: 2.5 Mbps, 1-on-1 connection
  6. Encoder method:
    • S = Multi-turn absolute method (external battery backup type)
  7. Encoder resolution:
    • 17b = 17-bit (131072 pulses/revolution)
  8. Input power supply voltage:
    • G = AC200V
  9. Product specifications:
    • LW = Lightweight specification
  10. Connector specification:
    • C = With standard connector
  11. Cable lead-out direction:
    • Blank = Standard, lateral
    • K = Rear
    • Y = Lateral (opposite)
      • Note:For cable outlet direction options, please refer to the technical documentation.
  12. Combined servo amplifier symbol:
    • A6 = MINAS A6
  13. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
【FHA-C mini Series LW Type】+ Panasonic Corporation MINAS A6N/A6B/A6S New Product News vol.56
PDF
2604-0R
PDF
2604-0R

Click here for Catalog

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual FHA-C mini Series LW Type AC Servo Actuator Manual compatible with Panasonic MINAS A6 series
PDF
2605-0R

Click here for Manual

Related products

FHA-C mini Series / AC Servo Actuator / Compact Hollow Shaft & Flat Type
The FHA-C mini Series of AC servo actuators are incomparably thin and compact. They even have a hollow structure. This allows high torque and high positional accuracy operation despite the compact size.
SHA-P Series / AC Servo Actuator / Hollow Shaft Flat Type Collaboration with Panasonic Corporation
The SHA-P Series models support connection with MINAS-A6 and A5 amplifiers. They can be used in RTEX and EtherCAT communication networks.
FHA-C mini Series LW Type / AC Servo Actuator / Compact, Lightweight & Flat Type
The FHA-C mini Series LW Type is a compact AC servo actuator designed with a focus on reduced weight and a low-profile form factor. Despite its compact size, it delivers high torque and high-precision positioning performance.
