KDU,HA-770 Series / Direct Drive Motor & Servo Driver / High Accuracy Type

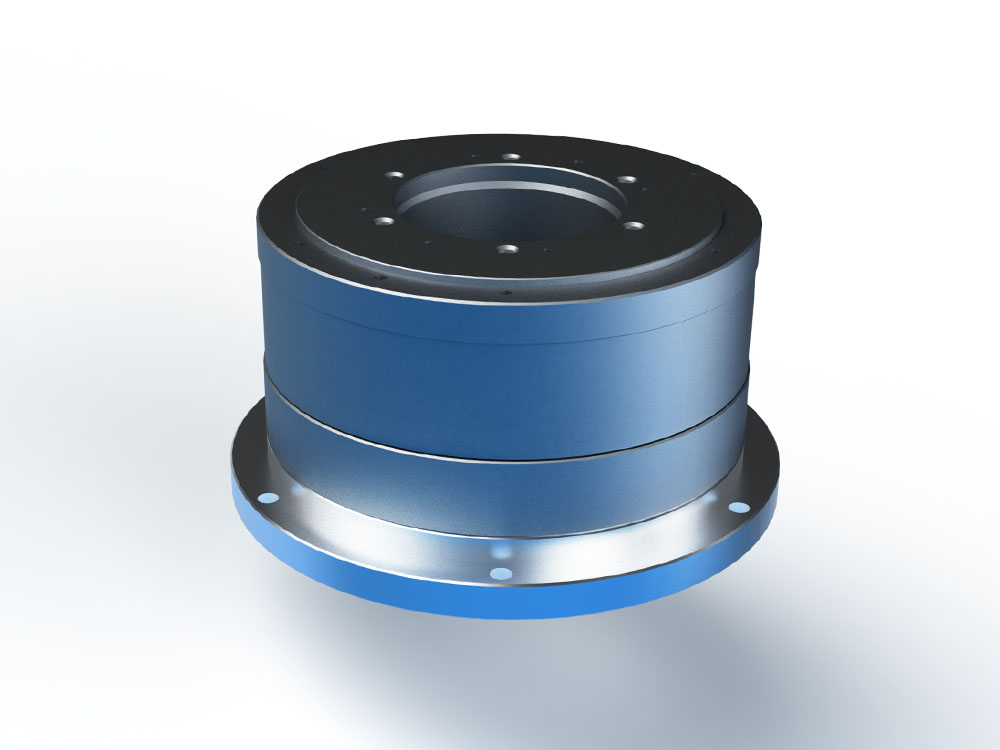

A direct drive motor that specializes in super high resolution.
- Super high resolution
    Resolution: 11,840,000 pulses/revolution
- High accuracy
    Absolute position accuracy: 10arc sec
    Repeatability: ±0.5arc sec
- Stopping stability
    Stopping stability during servolock: within ±2 pulse (±0.22arc sec)
- Large hollow diameter
    Motor outer diameter: φ130mm
- Hollow opening diameter: φ50mm

*Product images and CAD images are for reference purposes.
  See here for form details


The KDU Series Direct Drive Motor functions in combination with the HA-770 AC Servo Driver.

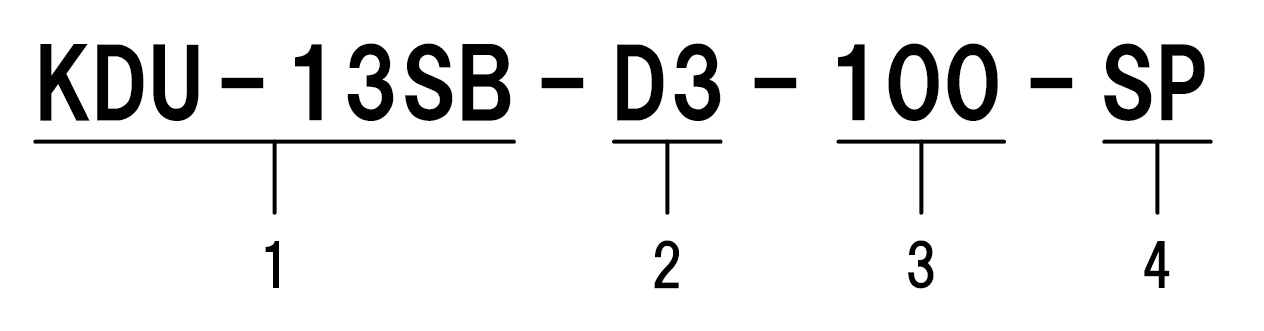

The model names for the system and how to read the symbols are explained below.
When ordering, do so using the following model names.

  1. Motor model: KDU Series Direct Drive Motor
    • KDU-13SB = KDU-13SB-E10
    • KDU-13WB = KDU-13WB-E10
  2. System designation: Combined with the HA-770-2 AC Servo Driver
  3. Input voltage:
    • 100 = AC100V
    • 200 = AC200V
  4. Special specification:
    • No description = Standard product
    • SP = Special specification
