MMA Series / AC Servo Motor / Flat & Hollow Motor Type Collaboration with Mitsubishi Electric

New

Features

Servo motors that feature our signature compact, flat, and hollow bore structure.

- 'MELSERVO-J5' from Mitsubishi Electric Corporation supports CC-Link IE TSN and SSCNET III/H. -New-
- 'MELSERVO-J4' from Mitsubishi Electric Corporation supports SSCNET III/H .
- Wide lineup of products with model numbers and rated output from 163 to 1320W
- Specification with brake (option) also available with same dimensions

*Product images are for reference purposes.

mmd2 file for Mitsubishi Electric MR-J5 amplifier 　　Download the file here

Model

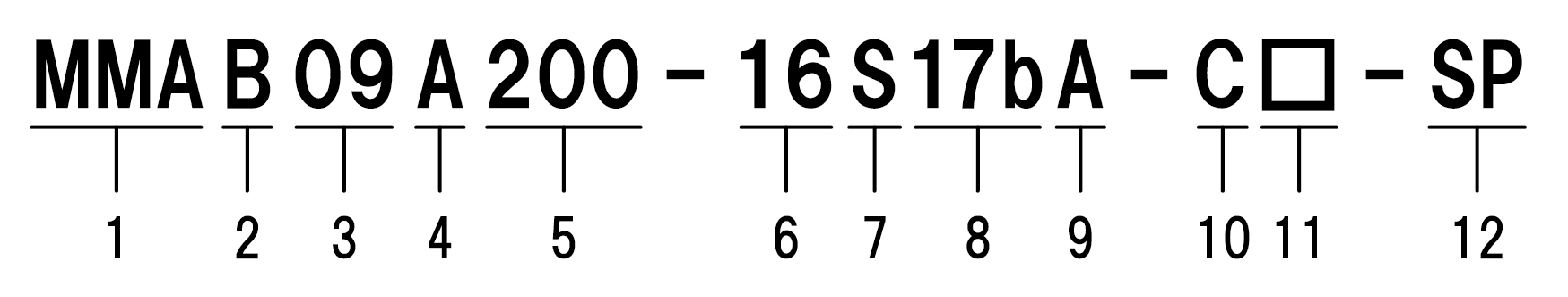

  1. Model: MMA series AC servo motor
  2. Motor version symbol:
    • A = Model No. 21A
    • B = Model Nos. 09, 12, 15
  3. Model Nos.: 09, 12, 15, 21A
  4. Brake:
    • A = Without brake
    • B = With brake
  5. Applicable servo driver input voltage: 200 = AC200V
  6. Encoder format :
    • 16 = Conforming to the Mitsubishi format　With backup capacitor
    • 36 = Conforming to the Mitsubishi format　Without a backup capacitor　-New-
  7. Encoder type: S = Multi-turn absolute system
  8. Encoder resolution: 17b = 17-bit absolute encoder, 131,072 pulses/revolution
  9. Encoder phase angle:
    • Phase difference between the voltage induced in motor phase U and absolute origin
    • A = Standard specification
  10. Connector specification:
    • C = Equipped with the the standard connector
    • N = Without connector
  11. Option symbol:
    • No symbol = Standard product
    • Y = Side exiting cable (Not supported in Type 21A)
  12. Special specification:
    • No symbol = Standard product
    • SP = Special-specification product
