PMA Series / AC Servo Motor / Flat & Hollow Motor Type Collaboration with Panasonic Corporation

Features

Servo motors that feature our signature compact, flat, and hollow bore structure.
'MINAS A6' RTEX/EtherCAT made by Panasonic Corporation is supported

- Wide lineup of products with model numbers and rated output from 163 to 1320W
- Specification with brake (option) also available with same dimensions

*Product images are for reference purposes.

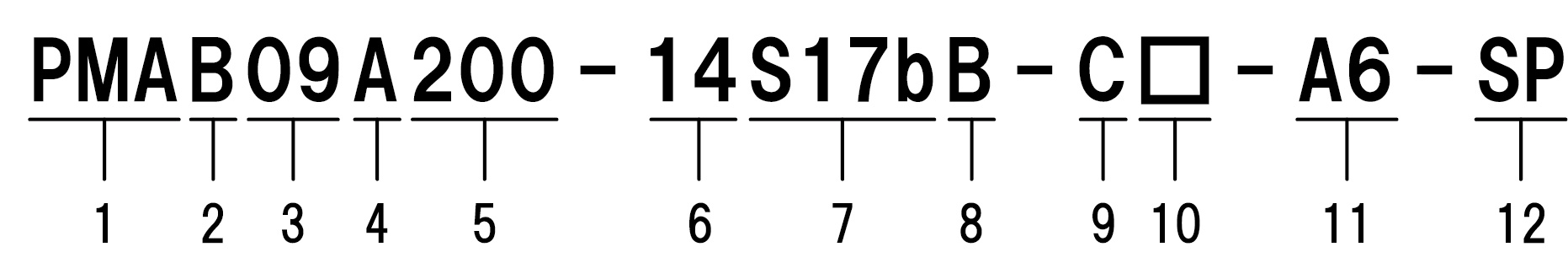

Model

  1. Model: PMA series AC servo motor
  2. Motor version symbol:
    • A = Model No. 21A
    • B = Model Nos. 09, 12, 15
    • C = Model No. 08
  3. Model Nos.: 08, 09, 12, 15, 21A
  4. Brake:
    • A = Without brake
    • B = With brake
  5. Applicable servo driver input voltage:
    • 200 = AC200V
  6. Encoder format:
    • 14 = MINAS-supported format compliant, transmission rate: 2.5 Mbps, 1-on-1 connection, with backup capacitor
    • 34 = MINAS-supported format compliant, transmission rate: 2.5 Mbps, 1-on-1 connection, without backup capacitor
  7. Encoder type:
    • S = Multi-turn absolute type
  8. Encoder resolution:
    • 17b = 17 bit (131072 pulses/revolution)
  9. Encoder phase angle: Phase difference between induced voltage in motor phase U and absolute origin
    • B = 30 degrees
  10. Connector specification:
    • C = With standard connector
    • N = Without connector
  11. Option symbol:
    • Y = Cable taken out from the side
      (It is not available for model Nos. 08, 21A.)
  12. Combined amplifier symbol:
    • A6 = MINAS A6 series
  13. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
SHA・MMA/PMA/YMA・FHA-C mini・RSF supermini Collaboration Series
PDF
2201-3R
PDF
2201-3R
【PMA Series】+ Panasonic Corporation MINAS A6N/A6B/A6S New Product News vol.35
PDF
2602-1R
PDF
1906-0R

Click here for Catalog

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual PMA Series PMA Series Flat Hollow Shaft AC Servo Motors Manual compatible with Panasonic Corporation MINAS A6 series
PDF
2509-3R

Click here for Manual

Related products

HMA Series / AC Servo Motor / Flat & Hollow Motor Type
The servo motor features a hollow and flat structure similar to the main product of the rotary actuator.
MMA Series / AC Servo Motor / Flat & Hollow Motor Type Collaboration with Mitsubishi Electric
The MMA Series models support connection with MELSERVO-J5 and MELSERVO-J4 amplifiers. They can be used in CC-Link IE TSN, SSCNETⅢ/H, and EtherCAT® communication networks.
YMA Series / AC Servo Motor / Flat & Hollow Motor Type Collaboration with YASKAWA Electric Corporation
The YMA Series models support connection with Σ7 amplifiers. They can be used in MECHAROLINK-III communication networks.
