HMA Series / AC Servo Motor / Flat & Hollow Motor Type

New

Features

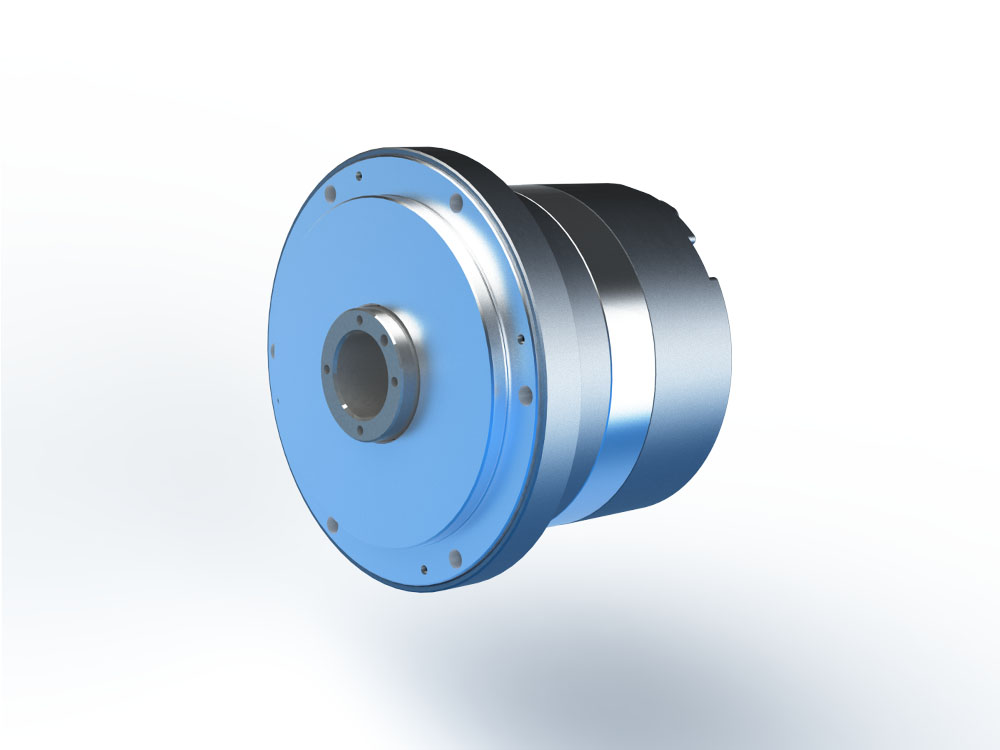

Servo motors that feature our signature compact, flat, and hollow bore structure.

- Wide lineup of products with model numbers and rated output from 163 to 1320W
- Specification with brake (option) also available with same dimensions

*Product images are for reference purposes.

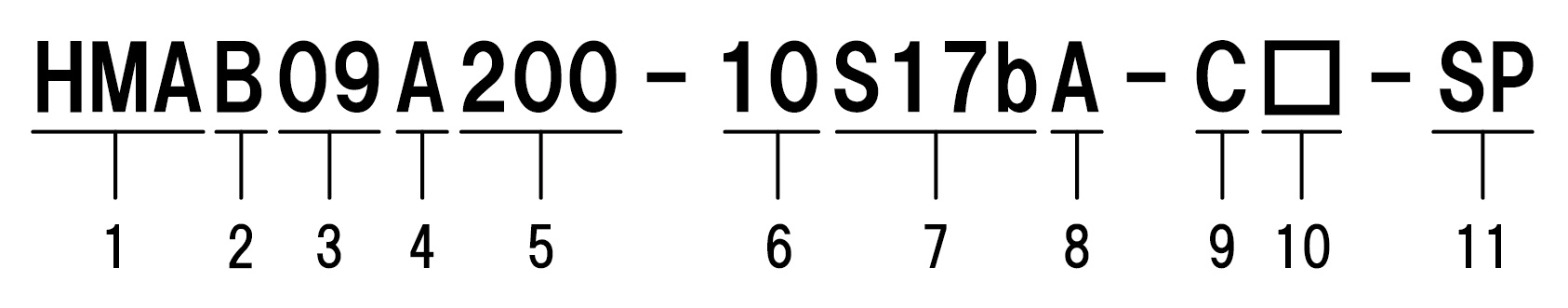

Model

  1. Model: HMA series AC servo motor
  2. Motor version symbol:
    • A = Model No. 21A
    • B = Model Nos. 09, 12, 15
    • C = Model No. 08
  3. Model Nos.: 08, 09, 12, 15, 21A
  4. Brake:
    • A = Without brake
    • B = With brake
  5. Applicable servo driver input voltage:
    • 100 = AC100V (100 V is compatible with model No. 09 only.)
    • 200 = AC200V
  6. Encoder format:
    • 10 = Compliant with format A, transmission rate: 2.5 Mbps, 1-on-1 connection
  7. Encoder type, resolution:
    • S17b = 17-bit high absolute encoder
  8. Encoder phase angle:
    • Phase difference between the voltage induced in motor phase U and absolute origin
    • A = 0 degree
  9. Connector specification:
    • C = With standard connector
    • N = Without connector
  10. Option symbol:
    • Y = Cable taken out from the side
    • (Please contact us for model No. 08. This option is not available for model No. 21A.)
  11. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
SHA・MMA/PMA/YMA・FHA-C mini・RSF supermini Collaboration Series
PDF
2201-3R
PDF
2201-3R
【YMA Series】+ YASKAWA Electric Corporation AC SERVOPACK Σ-7 Series New Product News vol.38
PDF
2005-1R
PDF
2005-1R
【PMA Series】+ Panasonic Corporation MINAS A6N/A6B/A6S New Product News vol.35
PDF
1906-0R
PDF
1906-0R
【MMA Series】+ Mitsubishi AC Servo MELSERVO J4 New Product News vol.33
PDF
1904-0R
PDF
1904-0R
【HMA Series】 New Product News vol.32
PDF
1910-3R
PDF
1910-3R

Click here for Catalog

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual HMA Series HMA Series Flat Hollow Shaft AC Servo Motors Manual
PDF
2107-3R
Manual MMA Series MMA Series Flat Hollow Shaft AC Servo Motors Manual compatible with Mitsubishi Electric MELSERVO J4 series
PDF
1907-0R
Manual PMA Series PMA Series Flat Hollow Shaft AC Servo Motors Manual compatible with Panasonic Corporation MINAS A6 series
PDF
2107-1R
Manual YMA Series YMA Series Flat Hollow Shaft AC Servo Motors Manual compatible with YASKAWA Electric Σ-7 series
PDF
2107-2R
Manual HA-800A Series 100V/200V Power Supply HA-800A Series AC Servo Driver (I/O command type) Manual for SHA, FHA-Cmini, FHA-C, RSF/RKF, HMA Series
PDF
2302-20R
Manual HA-800B Series 100V/200V Power Supply HA-800B Series AC Servo Driver (MECHATROLINK-Ⅱ type) Manual compatible with MECHATROLINK-Ⅱ (for SHA, FHA-Cmini, FHA-C, RSF/RKF,HMA Series)
PDF
2302-13R

Click here for Manual

Related products

MMA Series / AC Servo Motor / Flat & Hollow Motor Type Collaboration with Mitsubishi Electric
The MMA Series models support connection with MELSERVO-J4 amplifiers. They can be used in SSCNET III/H communication networks.
PMA Series / AC Servo Motor / Flat & Hollow Motor Type Collaboration with Panasonic Corporation
The PMA Series models support connection with MINAS-A6 and A5 amplifiers. They can be used in RTEX and EtherCAT communication networks.
YMA Series / AC Servo Motor / Flat & Hollow Motor Type Collaboration with YASKAWA Electric Corporation
The YMA Series models support connection with Σ7 amplifiers. They can be used in MECHAROLINK-III communication networks.

inquiry

If you have any comments about this product, please contact us using the inquiry form or the nearest sales office.
