LSA Series / Optical Galvano Scanner / High Accuracy & High Response Type


The LSA series are Galvano mirror type optical scanners capable of scanning at high speed and with high accuracy by employing a newly developed optical sensor and our unique mobile magnet type motors.
Combined with a dedicated driver, the optical galvano scanner smoothly performs continuous scanning, random access and other operations according to instructions from the user.

- Stable, high-speed driving of large loads
- Excellent temperature stability even without heater
- Angle sensor that's resistant to external ambience
- Stable motion that's resistant to noise
- Excellent linearity

*Product images and CAD images are for reference purposes.

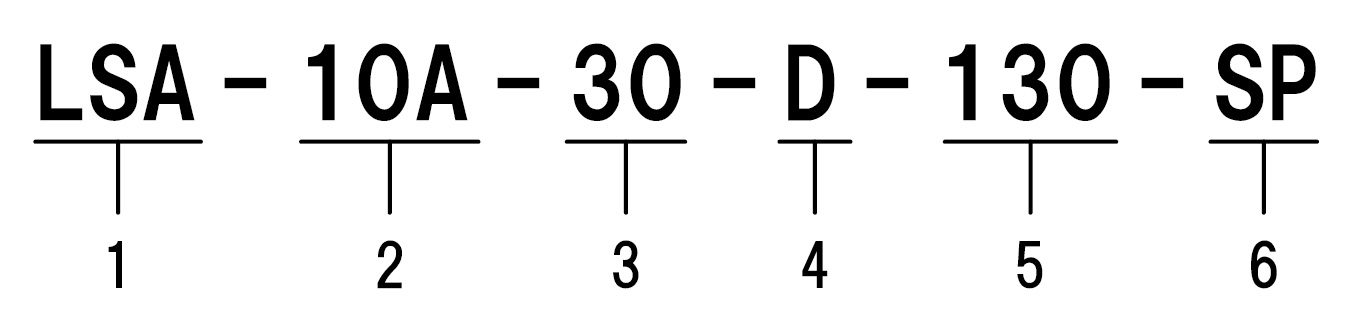

  See here for form details


  1. Scanner model
  2. System designation
  3. Combined driver model PSM-130
  4. Specification symbol
  5. Special specification:
    • No description = Standard product
    • SP = Special specification


Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
Mechanical Electronic Products General Catalog for Mechanical Electronic Products 2301-26R 2301-26R 2301-26R

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual LSA Series LSA-10A-30-D-130 Optical Galvano Scanner System Manual Scanner: LSA-10A-30 / Driver: PSM-130
