Micro Encoder Series / Sensor System / Ultra Small & High Resolution Type

Features

An ultra-small, high resolution incremental encoder.

- Dimensions:￠7.5 x 10.5mm,￠13 x 20mm (body)
- Detection system: Incremental
- Output pulse (pulse/revolution): 100, 200, 300, 360, 500, 1000
- Output phase: A-, B-, Z-phase

*Product images are for reference purposes.

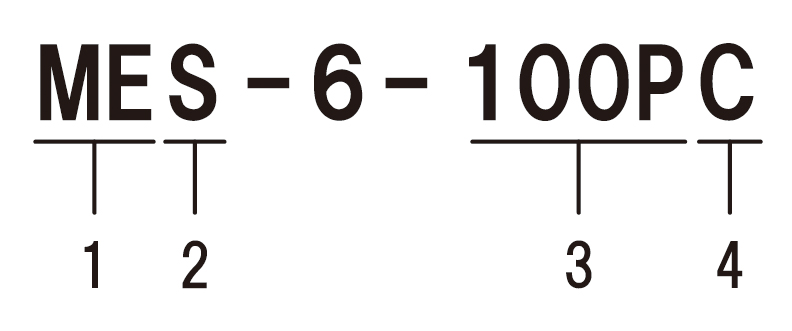

Model

Model: ME series micro encoder
Shaft shape: S = Single shaft, H = Hollow shaft [MES(H)-9]
Output pulses: 100, 200, 300, 360, 500[MES(H)-9], 1000 [MES(H)-9]
Output circuit:
- C = Square wave open collector output
- No description = Voltage output

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration
