HA-800B Series Servo Driver / Open Field Network MECHATROLINK-II Compatible Type for AC Servo Driver

Features

- MECHATROLINK-II for Open Field Network
- Positioning time shorter by 1/2 (compared to conventional model)
- Auto-tuning function added
- Approx. 30% less volume ratio

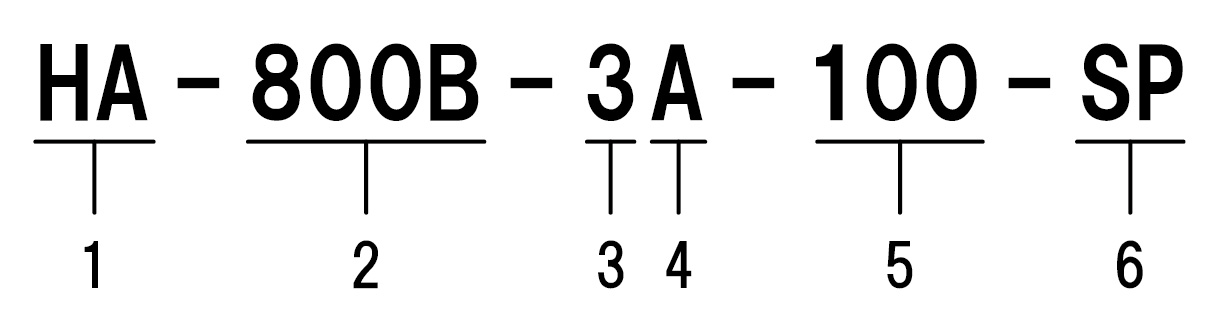

Model

  1. Model: HA series AC servo driver
  2. Series: 800B = MECHATROLINK type
  3. Rated output current:
    • 1 = 1.5A
    • 3 = 3A
    • 6 = 6A
    • 24 = 24A
  4. Adaptable encoder:
    • A = 13-bit absolute encoder
    • B = 14-wire incremental encoder
    • C = 4-wire wire-saving incremental encoder
    • D = 17-bit absolute encoder
    • E = 17-bit encoding incremental model
  5. Input voltage:
    • 100 = AC100V
    • 200 = AC200V
  6. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name PDF
Mechanical Electronic Products General Catalog for Mechanical Electronic Products

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual HA-800B Series 100V/200V Power Supply HA-800B Series AC Servo Driver (MECHATROLINK-Ⅱ type) Manual compatible with MECHATROLINK-Ⅱ
Manual HA-800 Series HA-800 Series Compatible with Absolute Encoders. Method for Installing Backup Battery (HA-800*-*A/D)
Software HA-800 Series PSF-800 Servo Parameter Setting Software for HA-800 Series Ver.2.00 ※Operating System requirements:WindowsRXP, Windows VistaR, WindowsR7
If an error occurs when PSF-800 is started, install the software below.
Download page for PSF-800 runtime library
Download
