CSF supermini Series / Unit / Ultra-compact Type

Features

The CSF supermini Series Gear Head Type is the world's smallest HarmonicDrive® that saves even more space.
It is engineered ultra small with attributes such as non-backlash, high positioning and high rotational accuracy.
You can select the motor direct connection type and conclusive type for the input shaft specification.

*Product images are for reference purposes.

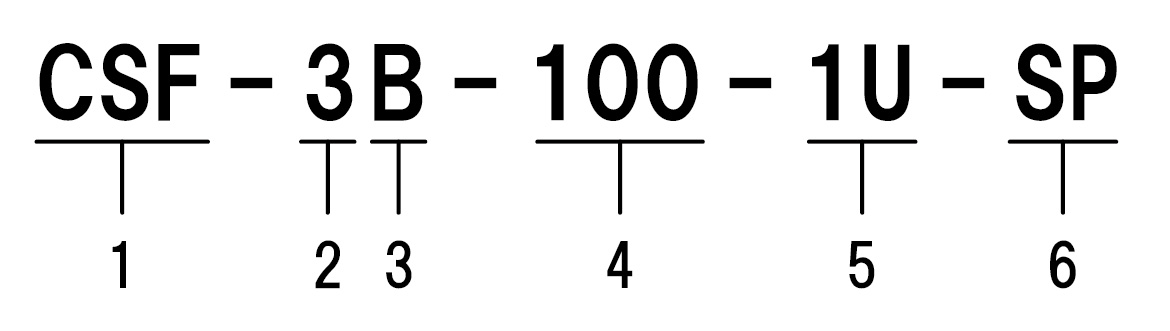

Model

  1. Model: CSF series
  2. Model No.: 3
  3. Version symbol: B (Latest version)
  4. Velocity ratio: 30, 50,100
  5. Models:
    • 1U = Unit type
    • 1U-CC = Gear head type Shaft output
  6. Special specification:
    • No description = Standard product
    • SP = Special specification
