CSF Series / Unit / Standard Type

Features

The unit type features a CSF component outfitted with high stiffness bearings (cross roller bearings).
Select the optimal product from a wide range of sizes and speed ratios.

Click here for the lightweight type CSF-LW Series
Click here for the ultra lightweight type CSF-ULW Series

*Product images are for reference purposes.
*CAD images are for reference purposes.See here for form details　　←Please select “Model Number” and confirm.

Model

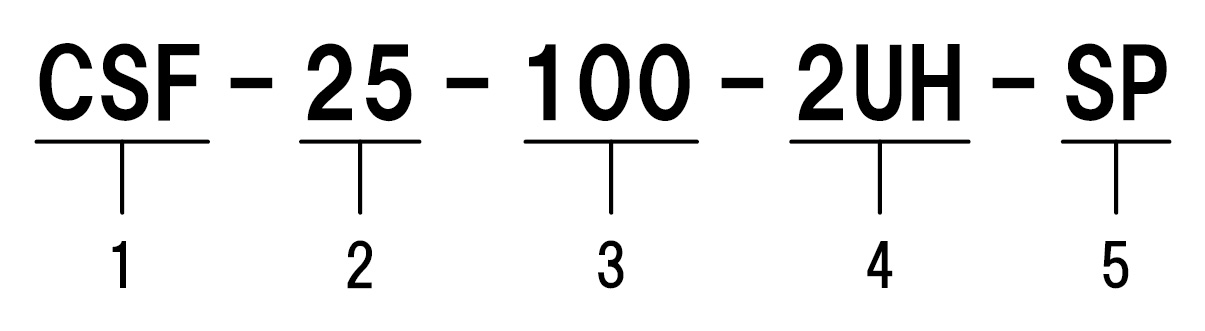

  1. Model: CSF series
  2. Model Nos: 14, 17, 20, 25, 32, 40, 45, 50, 58, 65
  3. Reduction ratio: 30, 50, 80, 100, 120, 160
  4. Model:
  5. Special specification:
    • No description = Standard product
    • SP = Special specification
