CSF-mini Series / Unit / Compact Type

New

Features

These easy to use products are unitized versions of the small HarmonicDrive® models.
Adopts 4-point contact ball bearing for an even more compact and lighter design

[New release] CSF-7-2XH add

Click here for the ultra flat high stiffness type CSF-2UP Series

*Product images are for reference purposes.
*CAD images are for reference purposes.See here for form details　　←Please select “Model Number” and confirm.

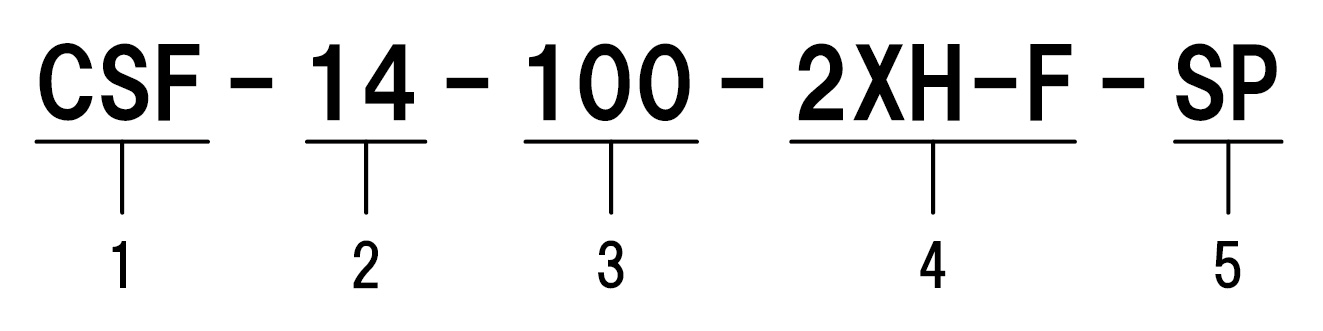

Model

  1. Model name: CSF series
  2. Model Nos: 5, 7(New), 8, 11, 14
  3. Reduction ratio: 30, 50, 80, 100
  4. Model:
    • 1U = Shaft input type Shaft output (conclusive)
    • 1U-CC = Gear head type Shaft output
    • 1U-F = Shaft input type with flange output
    • 1U-CC-F = 1U shape motor mounted type with flange output
    • 2XH-J = Gear head type Shaft output
    • 2XH-F = Gear head type Flange output
  5. Special specification:
    • No description = Standard product
