CSF-2UP Series / Unit / Super Flat & High Stiffness Type

Features

The lightweight, super flat, and high stiffness type that offers unitized versions of small models.
Achieves high stiffness by adopting a cross roller bearing in the main roller bearing in the output part.

*Product images are for reference purposes.
*CAD images are for reference purposes.See here for form details　　←Please select “Model Number” and confirm.

Model

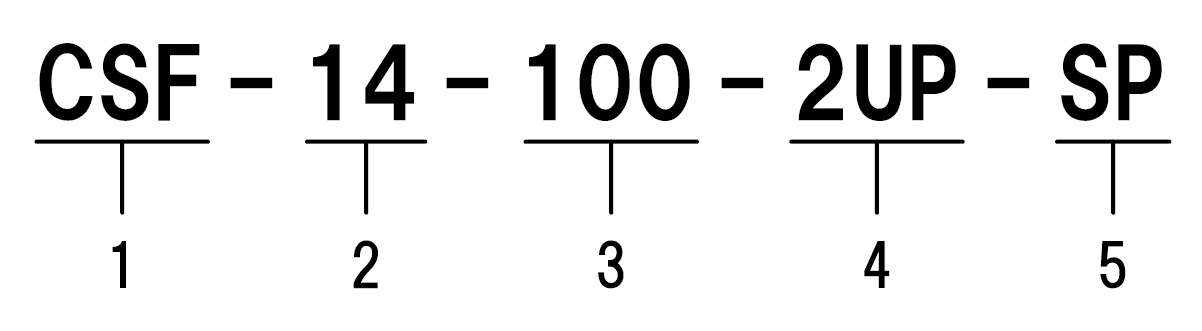

  1. Model name: CSF series
  2. Model Nos: 5, 8, 11, 14 (2UP type: 8, 11, 14)
  3. Reduction ratio: 30, 50, 80, 100 (2UP type: 30, 50, 100)
  4. Models: 2UP = Ultra flat/high stiffness type
  5. Special specification:
