CSF-ULW Series / Unit / Standard & Super Lightweight & Super Flat Type

New

Features

Our company has added a new series that pursues lightweight and flat shapes in HarmonicDrive® unit products.

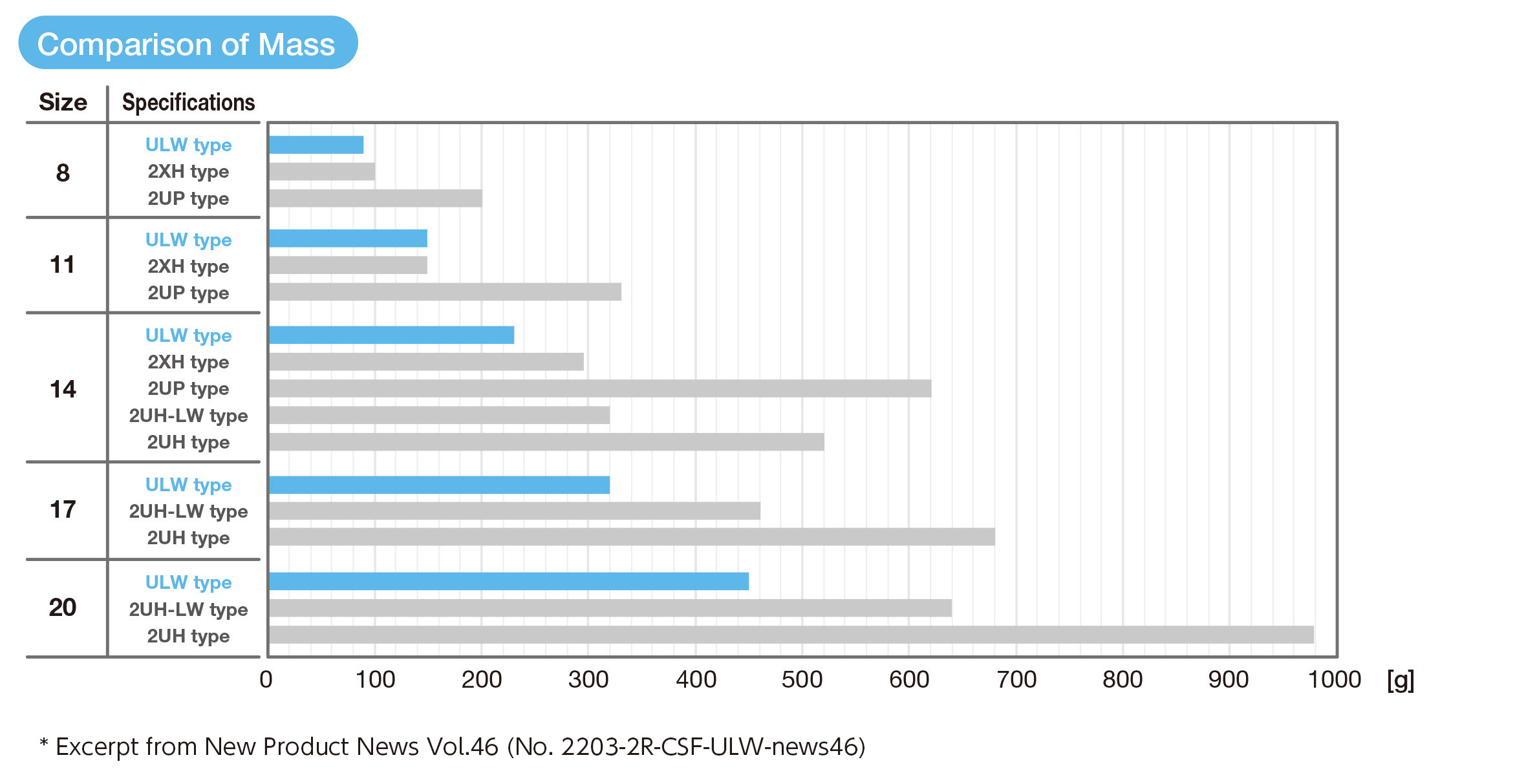

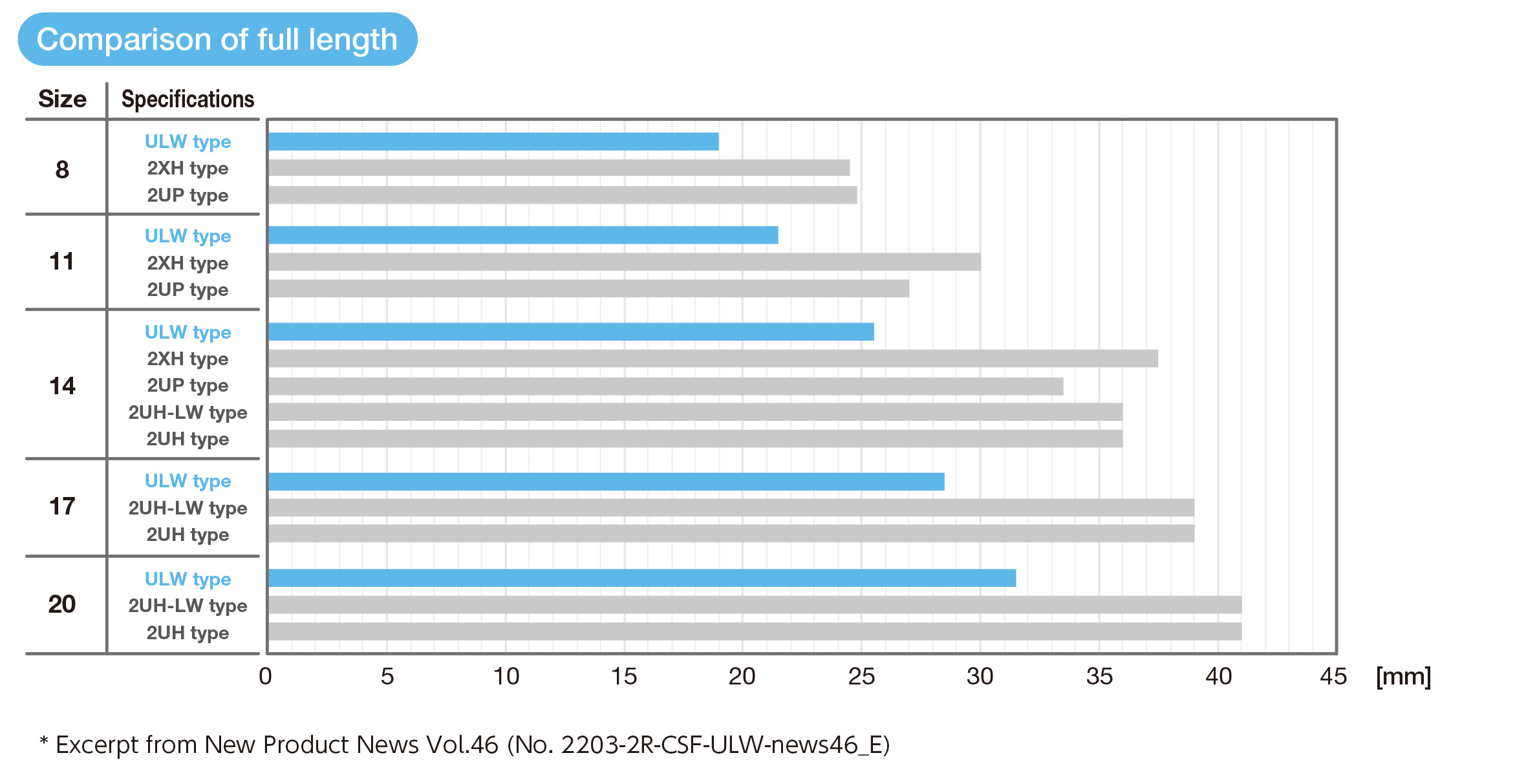

We have also redesigned the structure and design of the CSF-2UH type, which is the main product of the unit products, and realized a lighter weight and flatter shape than ever before.

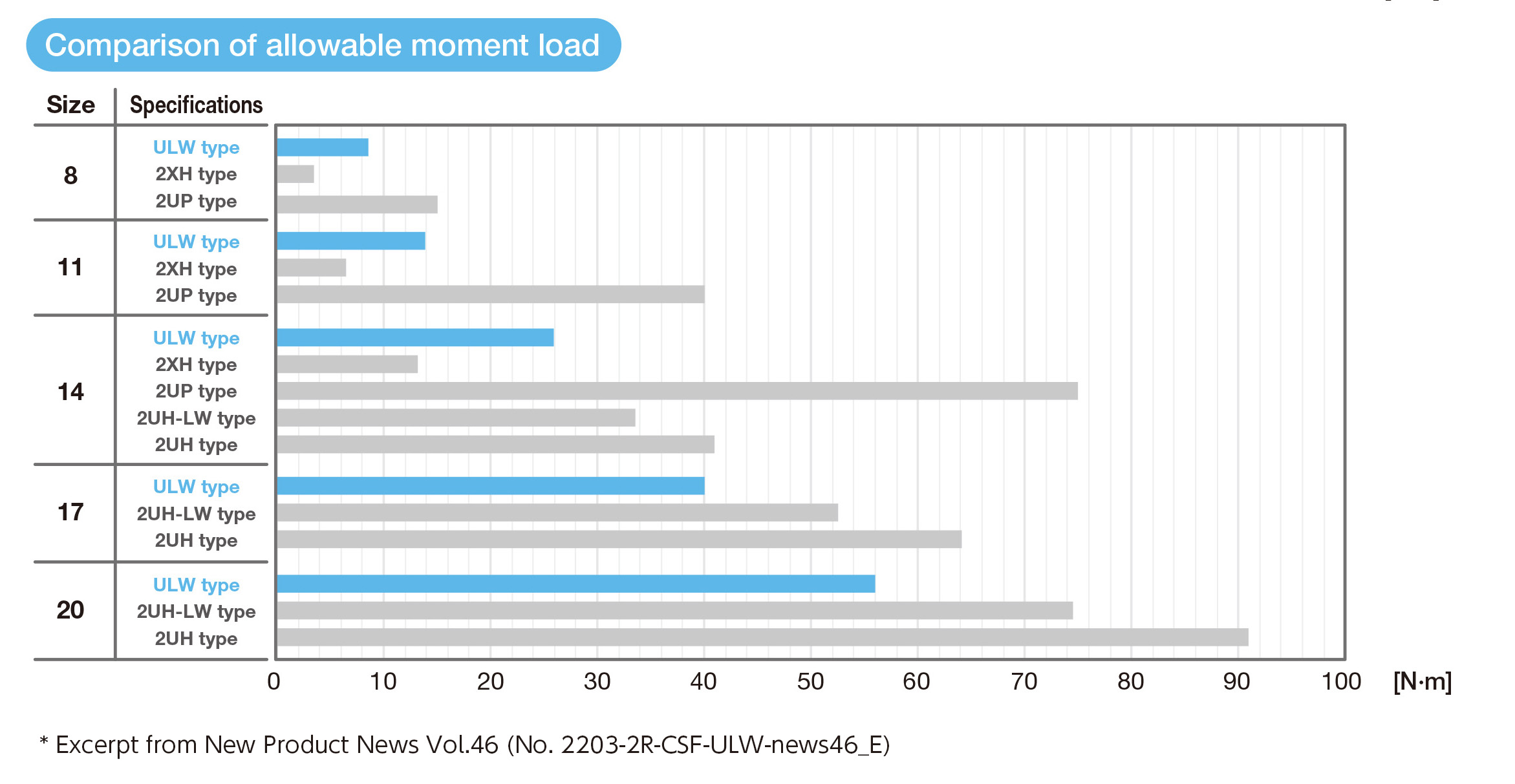

By adopting them in the tip axis of robots and various mechanical devices, our new series can be used to reduce the weight and size of robots and equipment as well as to improve specifications.
You can choose the optimal specifications from wide variations offered in 5 sizes.

*Product images are for reference purposes.

Model

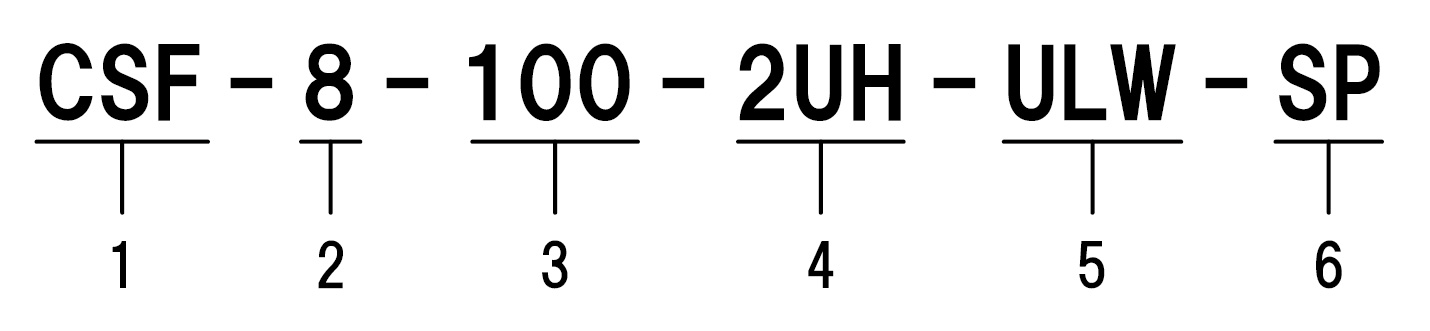

  1. Model: CSF series
  2. Model Nos: 8, 11, 14, 17, 20
  3. Reduction ratio: 30, 50, 80, 100, 120, 160
  4. Model:2UH = Unit type
  5. Specifications:
  6. Special specification:
    • No description = Standard product
    • SP = Special specification
