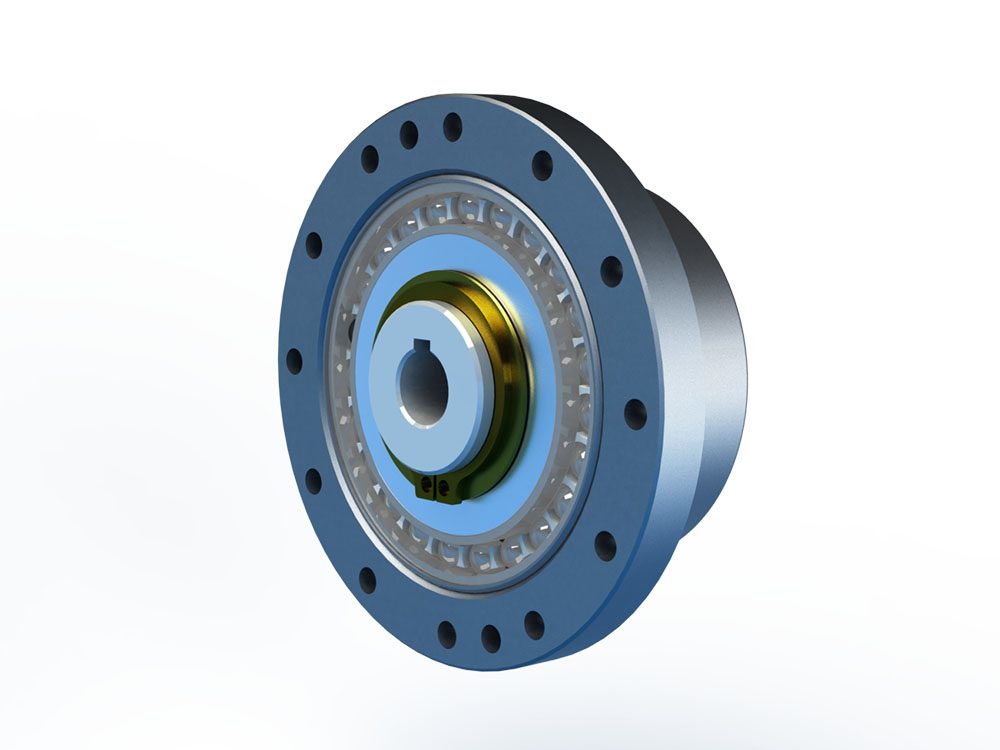

CSF Series /Component / Cup Type Standard Type

Features

The CSF component type is the standard non-backlash model comprised of only three basic components.
Select the optimal product from a wide range of sizes and speed ratios.

*Product images are for reference purposes.

Model

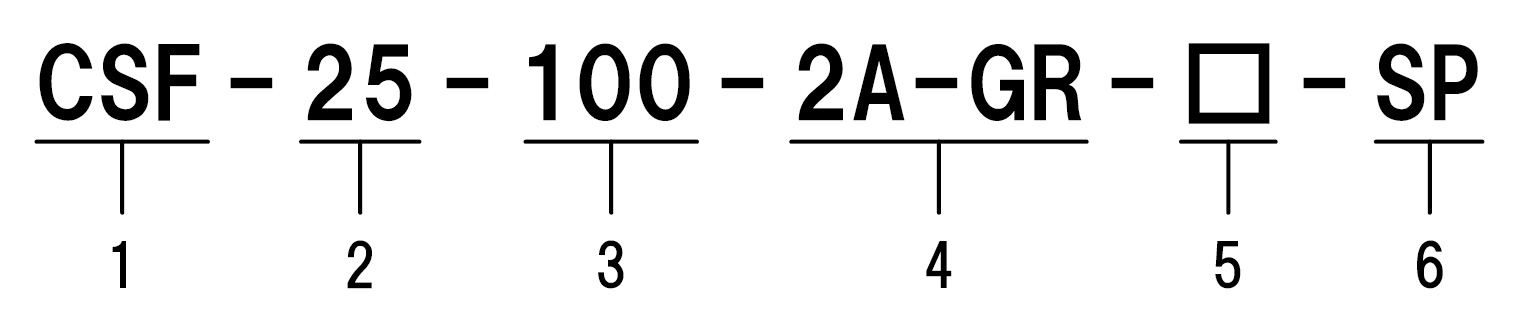

  1. Model name: CSF series
  2. Model Nos: 8, 11, 14, 17, 20, 25, 32, 40, 45, 50, 58, 65, 80, 90, 100
  3. Reduction ratio: 30, 50, 80, 100, 120, 160
  4. Model: 2A-GR = Component type (2A-R for model Nos 8, 11, 14 and 17)
  5. Specification: Symbols for the lubrication method and using conditions
  6. Special specification:
    • No description = Standard product
    • SP = Special specification

Catalog

Membership registration is required to print or download catalog data.

Click here for Membership registration

Catalog Series Catalog name Japanese English Traditional Chinese
HarmonicDrive® Reducer for precision control General catalog of HarmonicDrive®
PDF
2403-26R
PDF
2308-25R
PDF
2308-25R

Click here for Catalog

Manual / Software

Membership registration is required to print and download technical data.

Click here for Membership registration

Manual/Software Type/Series Material name/software name Detailed information English
Manual HarmonicDrive® Speed Reducer HarmonicDrive® Engineering Data
PDF
2107-21R

Click here for Manual

Related products

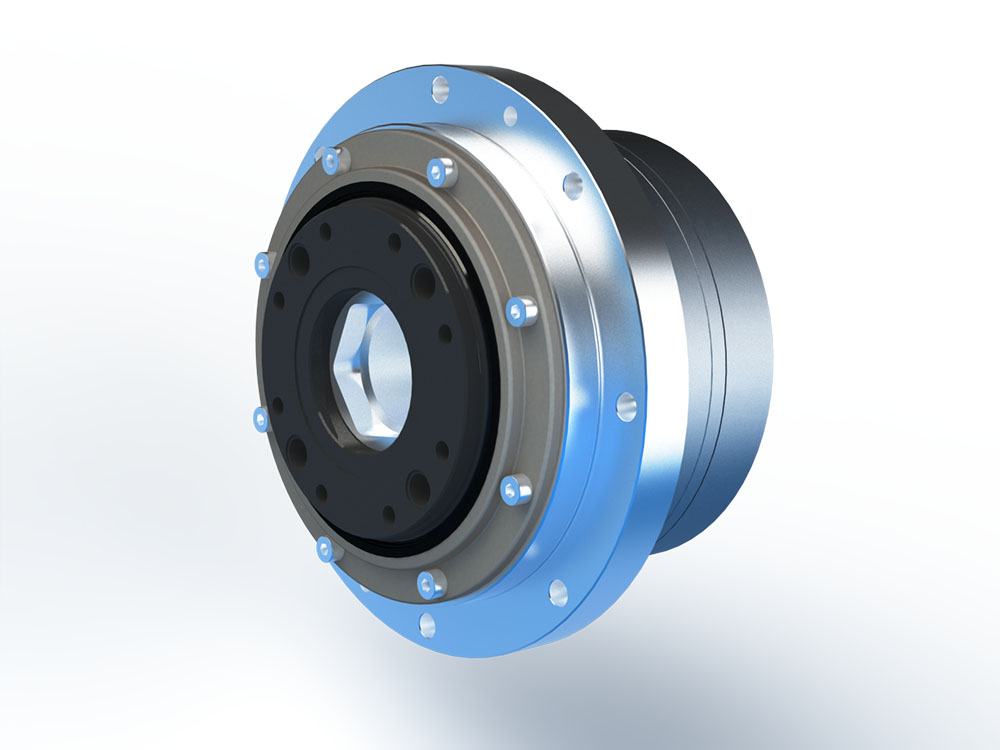

FHA-C mini Series / AC Servo Actuator / Compact Hollow Shaft & Flat Type
The FHA-C mini Series of AC servo actuators are incomparably thin and compact. They even have a hollow structure. This allows high torque and high positional accuracy operation despite the compact size.
FHA-C Series / AC Servo Actuator / Hollow Shaft & Flat Type
FHA-C Series AC servo actuators are ultra flat. They are incomparably thin and feature a hollow structure. These actuators play an important role in driving various factory automation (FA) equipment, such as robot joints, alignment mechanisms for semi-conductor and LCD devices, ATC of metal-cutting machines, and printing machine roller drive.
CSG Series / Component / Cup Type High Torque Type
The highest-spec model with a 30% higher torque capacity and 43% longer speed reducer life than the CSF Series of standard models.

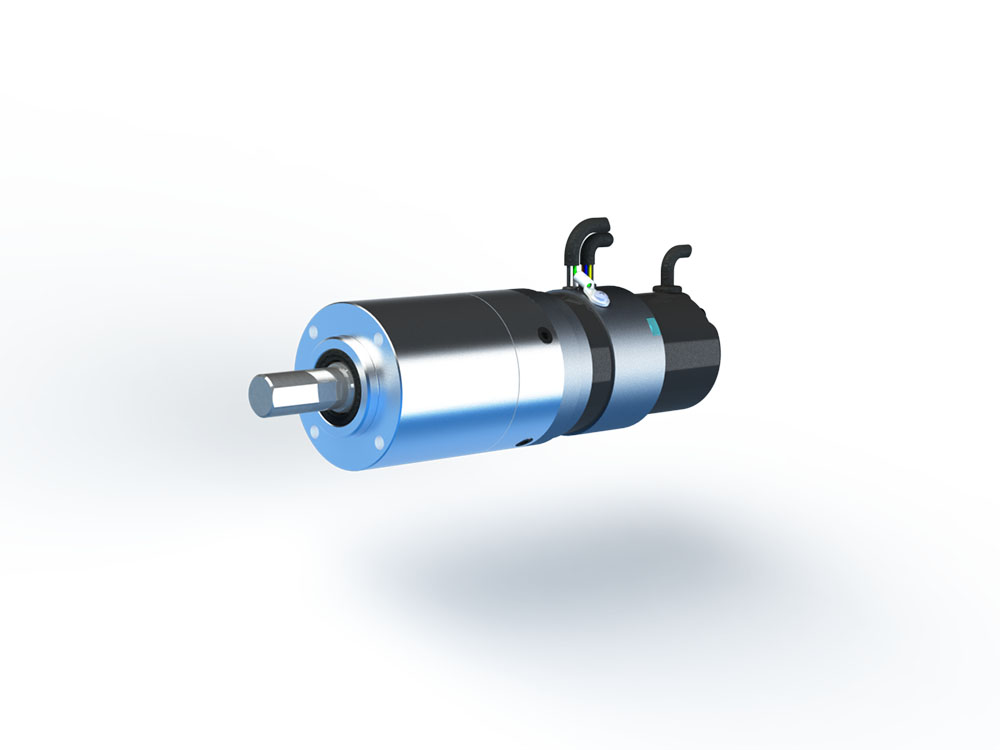

RSF-B mini Series / AC Servo Actuator / Compact Cylinder Type
A combination of a driver that utilizes its characteristics to its fullest and an actuator that combines a highly controllable AC servo motor with a compact and high accuracy Harmonic Drive® speed reducer enables optimal systems to be constructed. This meets the needs of cutting edge industries in the fields such as semiconductor manufacturing systems, measurement control devices, and industrial robots.

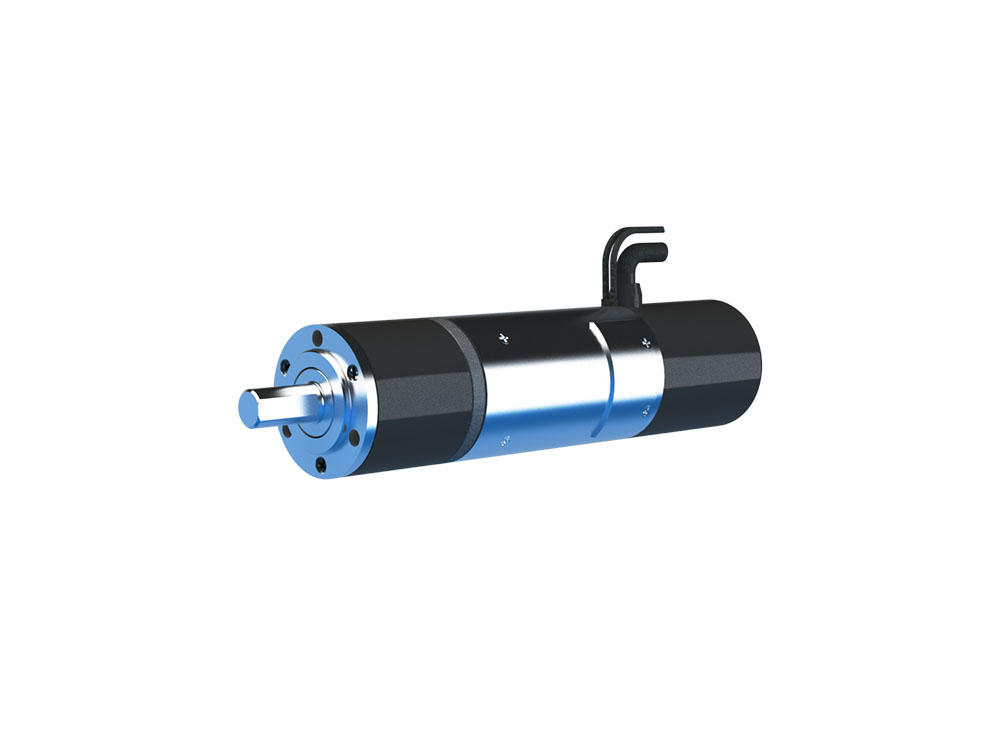

RH Series / DC Servo Actuator / Compact Cylinder Type
